Same model may have multiple batches, images only for reference.

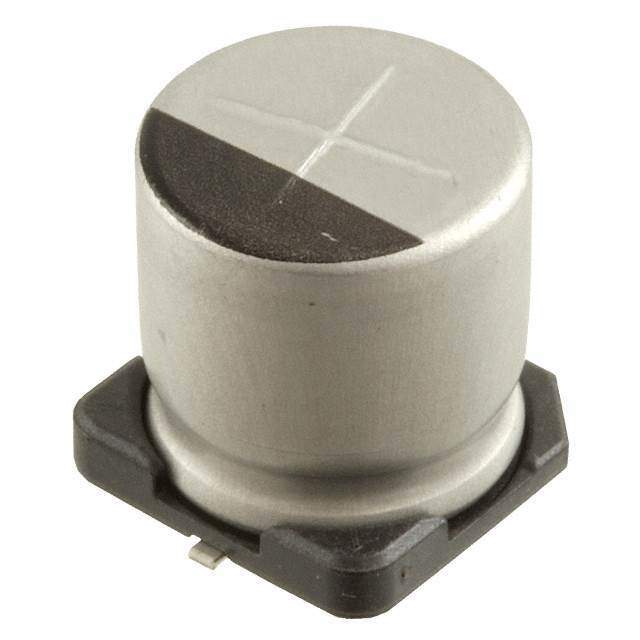

UCD1E471MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UCD1E471MNL1GS

Part No UCD1E471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 25V SMD / 470 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Not For New Designs
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 25 V
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 425 mA @ 120 Hz
Ripple Current @ High Frequency 850 mA @ 100 kHz
Impedance 80 mOhms
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names UCD1E471MNL1GS-ND,493-6386-1,493-6386-2,493-6386-6
Standard Package 500
Win Source Part Number 1102062-UCD1E471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1E471MNL1GS CAD Model

Description

The UCD1E471MNL1GS is an aluminum electrolytic capacitor from Nichicon.

  • Series: UCD series
  • Capacitance: 470 µF
  • Voltage Rating: 25 V
  • Application: automotive applications
  • Height: 0.413 inches when seated
  • Standard Package: 500
  • Surface Mount Land Size: 0.406 inches x 0.406 inches
  • Tolerance: ±20%
  • Impedance: 80 mOhms
  • Design: polarized
  • Temperature Range: -55°C to 105°C
  • Ripple Current: 425 mA @ 120 Hz and 850 mA @ 100 kHz
  • Performance: reliable and efficient solution that offers stable performance
