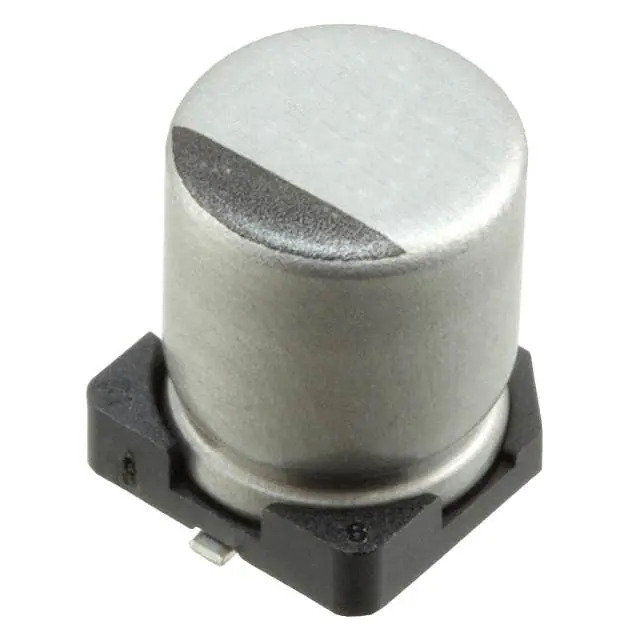

UCD1C221MCL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD1C221MCL1GS

Part No UCD1C221MCL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 220UF 20% 16V SMD / 220 µF 16 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD1C221MCL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 220 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 145 mA @ 120 Hz
Ripple Current @ High Frequency 290 mA @ 100 kHz
Impedance 320 mOhms
Lead Spacing -
Size / Dimension 0.248" Dia (6.30mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.260" L x 0.260" W (6.60mm x 6.60mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360164-UCD1C221MCL1GS
Ultra Librarian 3D Model Ultra Librarian UCD1C221MCL1GS CAD Model

Description

The UCD1C221MCL1GS is an aluminum electrolytic capacitor from Nichicon's UCD series.

  • Series: UCD
  • Capacitance: 220 µF
  • Voltage Rating: 16 V
  • Application: Automotive
  • Operating Temperature Range: -55°C to 105°C
  • Lifetime: 2000 hours @ 105°C
  • Package: Radial, Can - SMD
  • Mounting Type: Surface Mount
  • Size (Dia x H): 0.248" (6.30mm) x 0.315" (8.00mm)
  • Product Status: Active
  • REACH Status: REACH Unaffected
  • AEC-Q200: Yes
  • Ripple Current (Low/High Freq): 145 mA @ 120 Hz / 290 mA @ 100 kHz
  • Description: A high-quality capacitor that provides stable and efficient performance in automotive systems.
