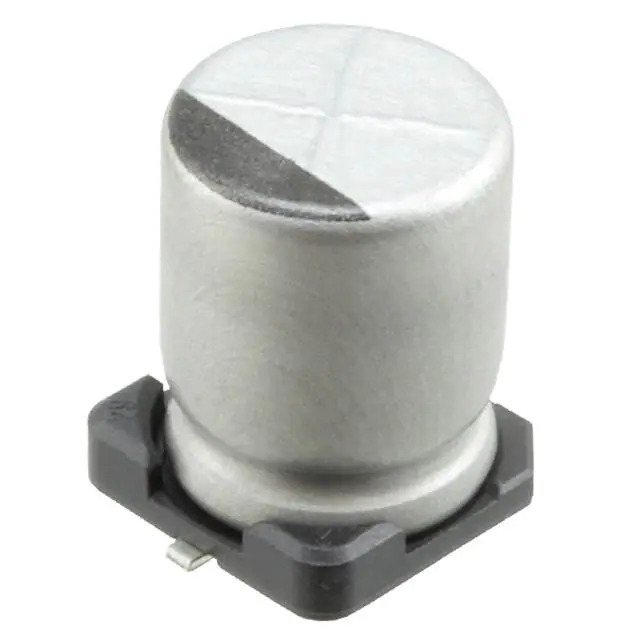

Same model may have multiple batches, images only for reference.
UCD0J471MNL1GS Nichicon
Same model may have multiple batches, images only for reference.

UCD0J471MNL1GS

Part No UCD0J471MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 6.3V SMD / 470 µF 6.3 V Aluminum Electrolytic Capacitors Radial, Can - SMD 2000 Hrs @ 105°C
Datasheet
UCD0J471MNL1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UCD
Package Tape & Reel
Product Status Active
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive
Ripple Current @ Low Frequency 300 mA @ 120 Hz
Ripple Current @ High Frequency 600 mA @ 100 kHz
Impedance 160 mOhms
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.413" (10.50mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1360190-UCD0J471MNL1GS
Ultra Librarian 3D Model Ultra Librarian UCD0J471MNL1GS CAD Model

Description

The UCD0J471MNL1GS is a radial, surface mount aluminum electrolytic capacitor from Nichicon's UCD series.

  • Capacitance: 470 µF
  • Tolerance: ±20%
  • Voltage Rating: 6.3 V
  • Application: Automotive
  • Ripple Current (120 Hz): 300 mA
  • Ripple Current (100 kHz): 600 mA
  • Diameter: 0.315" (8.00mm)
  • Height: 0.413" (10.50mm)
  • Mounting Type: Surface Mount
  • Lifetime: 2000 hours @ 105°C
  • AEC-Q200: Rated
  • REACH: Unaffected
  • ESR: Not specified
  • Packaging: Tape and Reel
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
