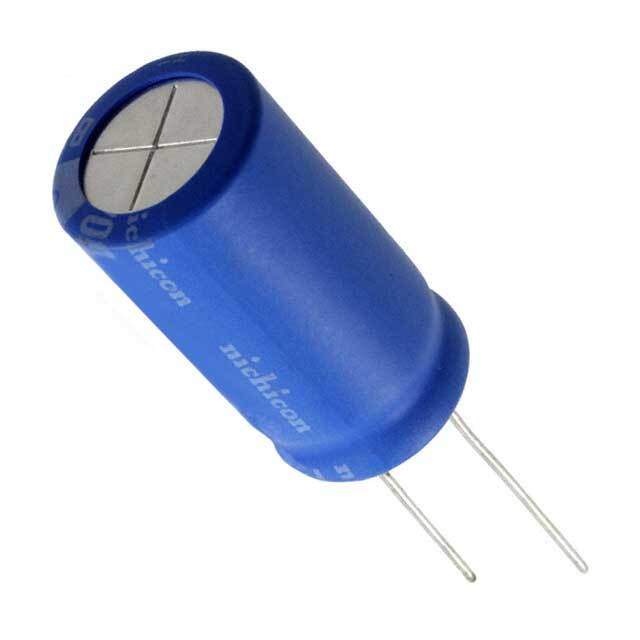

Same model may have multiple batches, images only for reference.

UBW1J102MHD

Name: UBW1J102MHD
Brand: Nichicon
SKU: 802830
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UBW1J102MHD
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 63V RADIAL / ALUMINUM ELECTROLYTIC CAPACITORS
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nichicon
Packaging	Bulk
Capacitance	1000μF
Tolerance	±20%
Voltage - Rated	63V
Lifetime at Temp.	3000 Hrs at 135°C
Temperature Range - Operating	-55°C ~ 135°C
Polarization	Polar
Applications	Automotive
Ripple Current at Low Frequency	1.273A at 120Hz
Ripple Current at High Frequency	1.9A at 100kHz
Impedance	55 mOhms
Lead Spacing	0.295" (7.50mm)
Dimension	0.630" Dia (16.00mm)
Height - Seated (Maximum)	1.319" (33.50mm)
Mounting Style	Through Hole
Manufacturer Package	Radial, Can
Manufacturer Pack Quantity	50
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Balance
Win Source Part Number	802830-UBW1J102MHD
Ultra Librarian 3D Model	Ultra Librarian UBW1J102MHD CAD Model

Description

The 802830-UBW1J102MHD from Nichicon is a bulk-packaged, through-hole capacitor designed for automotive applications.

Capacitance: 1000μF
Voltage Rating: 63V
Tolerance: ±20%
Impedance: 55 mOhms
Temperature Range: -55°C to 135°C
Lifetime @ Temperature: 3000 hours @ 135°C
Ripple Current @ Low Frequency: 1.273A @ 120Hz
Ripple Current @ High Frequency: 1.9A @ 100kHz
Package: Radial, can-style
Diameter: 0.630 inches
Maximum Seated Height: 1.319 inches
Packaging: Packs of 50
