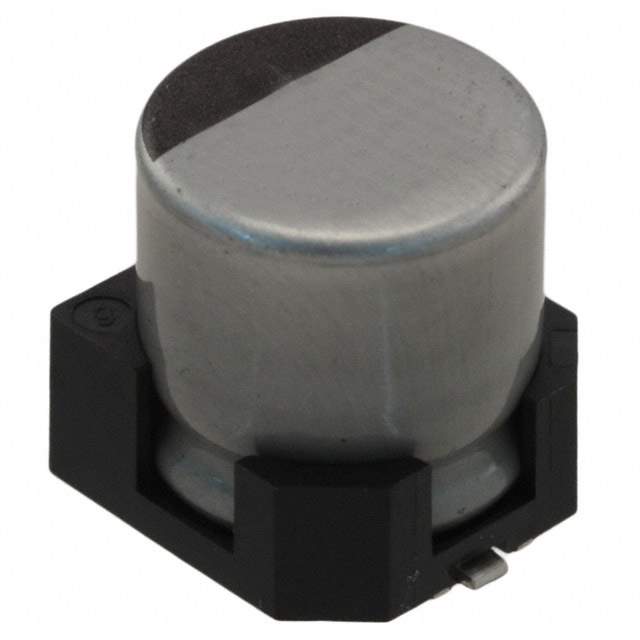

UBC1H470MNS1GS Real Image1 UBC1H470MNS1GS Real Image2
Same model may have multiple batches, images only for reference.
UBC1H470MNS1GS Real Image1 UBC1H470MNS1GS Real Image2
UBC1H470MNS1GS Real Image1 UBC1H470MNS1GS Real Image2
Same model may have multiple batches, images only for reference.

UBC1H470MNS1GS

Part No UBC1H470MNS1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 47UF 20% 50V SMD / 47 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - SMD 1000 Hrs @ 150°C
Datasheet
UBC1H470MNS1GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Nichicon
Series UBC
Package Tape & Reel
Product Status Not For New Designs
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 1000 Hrs @ 150°C
Temperature Range - Operating -40°C ~ 150°C
Polarization Polar
Ratings -
Applications Automotive
Ripple Current @ Low Frequency 67 mA @ 120 Hz
Ripple Current @ High Frequency 100 mA @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.453" (11.50mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Standard Package 500 pcs
Win Source Part Number 1383777-UBC1H470MNS1GS
Ultra Librarian 3D Model Ultra Librarian UBC1H470MNS1GS CAD Model

Description

The UBC1H470MNS1GS is an aluminum electrolytic capacitor in a radial, can - SMD package.

  • Manufacturer: Nichicon
  • Series: UBC
  • Application: Automotive
  • Capacitance: 47µF @ ±20%
  • Voltage Rating: 50V
  • Ripple Current (Low Frequency): 67mA
  • Ripple Current (High Frequency): 100mA
  • Height: 0.453" (11.50mm)
  • Mounting Type: Surface Mount
  • Operating Temperature Range: -40°C to 150°C
  • Standard Package: 500 pcs
