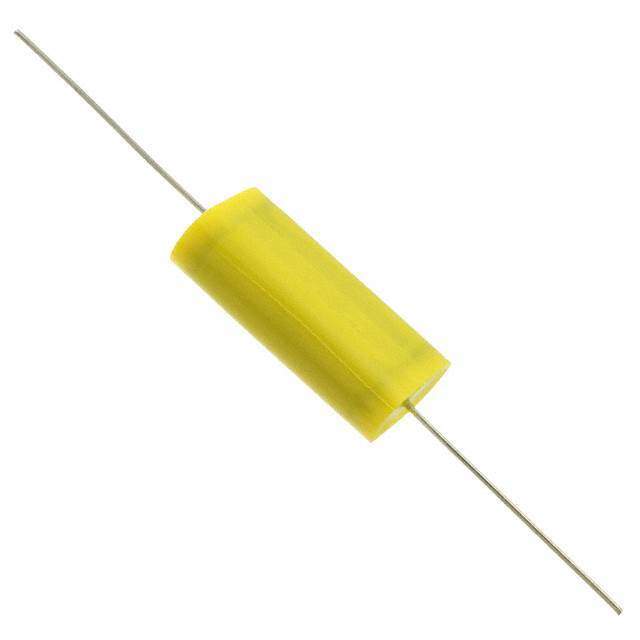

QAP2J105KRP Real Image
Same model may have multiple batches, images only for reference.

QAP2J105KRP

Part No QAP2J105KRP
Manufacturer Nichicon
Catalog Film Capacitors
Description CAP FILM 1UF 10% 630VDC AXIAL / 1 µF Film Capacitor 630V Polypropylene (PP), Metallized Axial
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Nichicon
Series QAP
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - DC 630V
Dielectric Material Polypropylene (PP), Metallized
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Through Hole
Package / Case Axial
Dimension 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm)
Termination PC Pins
Applications High Frequency, Switching
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0060
Other Names 493-10207
Standard Package 100
Win Source Part Number 1160877-QAP2J105KRP
Ultra Librarian 3D Model Ultra Librarian QAP2J105KRP CAD Model

Description

The Nichicon QAP2J105KRP is a film capacitor from Nichicon that has a capacitance of 1 µF and a voltage rating of 630V DC.

  • Capacitance: 1 µF
  • Voltage Rating: 630V DC
  • Dielectric Material: Polypropylene (PP) Metallized
  • Tolerance: ±10%
  • Termination: PC Pins
  • Package/Case: Axial
  • Application: High Frequency and Switching
  • Temperature Range: -40°C to 85°C
  • Dimensions: 0.850" W, 0.469" T x 1.575" L (21.60mm, 11.90mm x 40.00mm)
  • Packaging: Bulk
  • Standard Package: 100 Pieces
