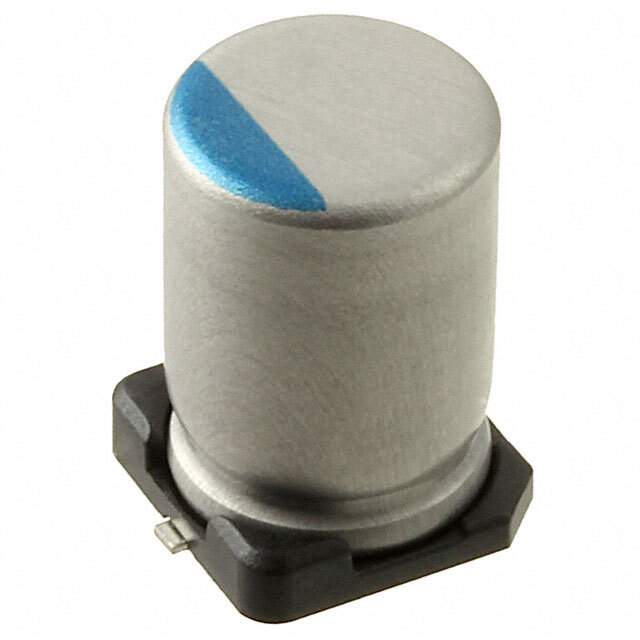

PCR1D331MCL6GS Real Image
Same model may have multiple batches, images only for reference.

PCR1D331MCL6GS

Part No PCR1D331MCL6GS
Manufacturer Nichicon
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 330UF 20% 20V SMD / 330 µF 20 V Aluminum - Polymer Capacitors Radial, Can - SMD 19mOhm 4000 Hrs @ 125°C
Datasheet
PCR1D331MCL6GS Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Nichicon
Series PCR
Package Tape & Reel
Type Polymer
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 20 V
ESR (Equivalent Series Resistance) 19mOhm
Lifetime @ Temp. 4000 Hrs @ 125°C
Temperature Range - Operating -55°C ~ 125°C
Ratings AEC-Q200
Applications Automotive
Ripple Current @ High Frequency 3.3 A @ 100 kHz
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Standard Package 500
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1340888-PCR1D331MCL6GS
Ultra Librarian 3D Model Ultra Librarian PCR1D331MCL6GS CAD Model

Description

This aluminum polymer capacitor is a high-quality electronic component that is ideal for use in automotive applications.

  • Series: PCR
  • Capacitance: 330 µF
  • Voltage Rating: 20V
  • Package: Tape and Reel
  • Diameter: 0.315 inches
  • Seated Height: 0.394 inches
  • Tolerance: ±20%
  • ESR: 19mOhm
  • Lifetime @ Temperature: 4000 hours @ 125°C
  • Surface Mount Land Size: 0.327 inches long and 0.327 inches wide
  • Mounting Type: Surface Mount
  • Package/Case: Radial, Can - SMD
  • Temperature Range: -55°C to 125°C
