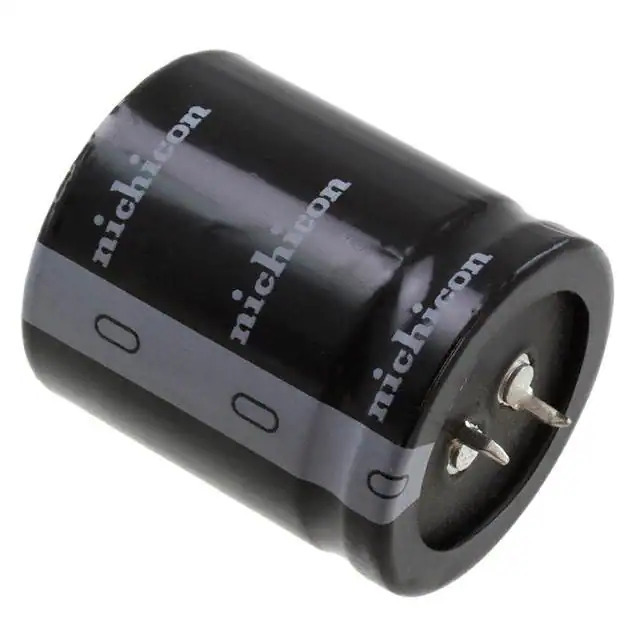

Same model may have multiple batches, images only for reference.

LLS2W391MELC

Name: LLS2W391MELC
Brand: Nichicon
SKU: 1360652
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LLS2W391MELC
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 390UF 20% 450V SNAP / 390 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS2W391MELC Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Product Status	Active
Capacitance	390 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-25°C ~ 85°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	2.38 A @ 120 Hz
Ripple Current @ High Frequency	3.4034 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.575" (40.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360652-LLS2W391MELC
Ultra Librarian 3D Model	Ultra Librarian LLS2W391MELC CAD Model

Description

The LLS2W391MELC is a radial, snap-in aluminum electrolytic capacitor from Nichicon's LLS series. Nichicon

Series: LLS
Capacitance: 390 μF
Voltage Rating: 450 V
Temperature Range: -25°C to 85°C
Application: General Purpose
Tolerance: ±20%
Ripple Current (Low Frequency): 2.38 A @ 120 Hz
Ripple Current (High Frequency): 3.4034 A @ 50 kHz
Size (Diameter): 1.378"
Seated Height: 1.575"
Mounting Type: Snap-In
Lead Spacing: 0.394"
Lifetime: 3000 hours @ 85°C
Polarization: Polarized
