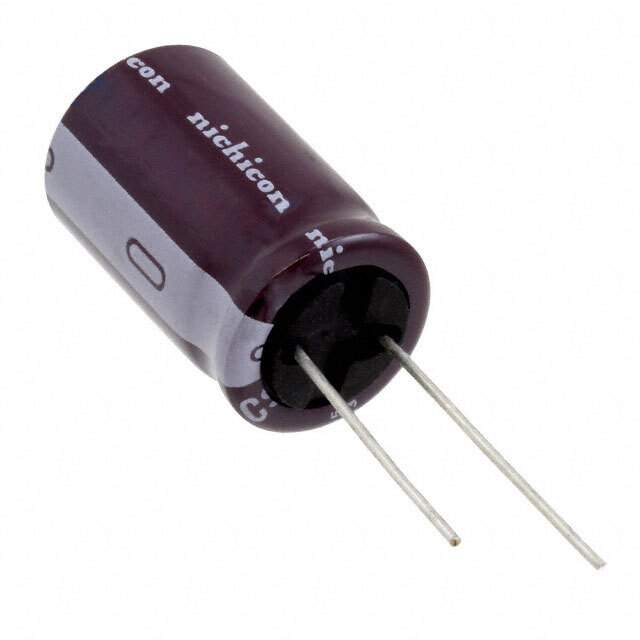

Same model may have multiple batches, images only for reference.

UCS2E101MHD1TN

Name: UCS2E101MHD1TN
Brand: Nichicon
SKU: 1329105
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	UCS2E101MHD1TN
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 100UF 20% 250V RADIAL / 100 µF 250 V Aluminum Electrolytic Capacitors Radial, Can 10000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Manufacturer	Nichicon
Packaging	Cut Tape (CT),Tape & Box (TB)
Capacitance	100 µF
Tolerance	±20%
Voltage - Rated	250 V
Lifetime @ Temp.	10000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	765 mA @ 120 Hz
Ripple Current @ High Frequency	1.53 A @ 100 kHz
Lead Spacing	0.295" (7.50mm)
Size / Dimension	0.630" Dia (16.00mm)
Height - Seated (Max)	1.043" (26.50mm)
Mounting	Through Hole
Case / Package	Radial, Can
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0020
Other Part Number	493-13285-1,493-13285-3
Standard Package	250
Win Source Part Number	1329105-UCS2E101MHD1TN
Ultra Librarian 3D Model	Ultra Librarian UCS2E101MHD1TN CAD Model

Description

The Nichicon UCS2E101MHD1TN is an aluminum electrolytic capacitor designed for through-hole mounting.

Manufacturer: Nichicon
Capacitance: 100 µF
Voltage Rating: 250 V
Tolerance: ±20%
Size: 0.630” Dia (16.00mm)
Height: 1.043” (26.50mm)
Lead Spacing: 0.295” (7.50mm)
Polarization: Polarized
Ripple Current: 765 mA @ 120 Hz, 1.53 A @ 100 kHz
Lifetime: 10,000 hours @ 105°C
Application: General Purpose
Operating Temperature: -40°C to 105°C
ROHS3 Compliant: Yes
ECCN: EAR99
