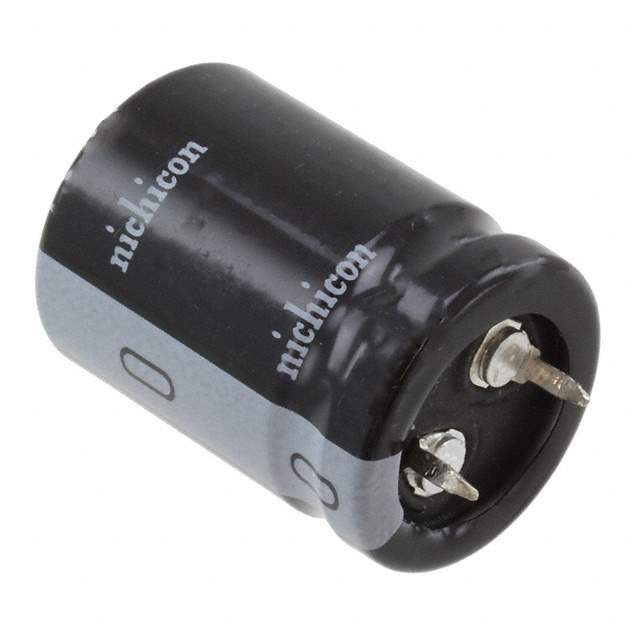

LLS1J222MELZ Real Image
Same model may have multiple batches, images only for reference.

LLS1J222MELZ

Part No LLS1J222MELZ
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description ALUMINUM ELECTROLYTIC CAPACITORS
Datasheet
LLS1J222MELZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Series LLS
Packaging Bulk
Capacitance 2200μF
Tolerance ±20%
Voltage Rating DC 63V
Lifetime @ Temp. 3000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 2.35A @ 120Hz
Ripple Current - High Frequency 2.7025A @ 50kHz
Lead Spacing 0.394" (10.00mm)
Size 0.866" Dia (22.00mm)
Height - Seated (Maximum) 1.260" (32.00mm)
Mounting Style Through Hole
Package Radial, Can - Snap-In
Win Source Part Number 1196594-LLS1J222MELZ
Manufacturer Homepage www.nichicon-us.com
Popularity Medium
Supply and Demand Status Limited
Family Name LS
Introduction Date September 12, 2003
ECCN EAR99
Country of Origin China, Japan, Malaysia
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian LLS1J222MELZ CAD Model

Description

The LLS1J222MELZ is a snap-in aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 2200μF
  • Voltage Rating: 63V
  • Tolerance: ±20%
  • Supply and Demand Status: Limited
