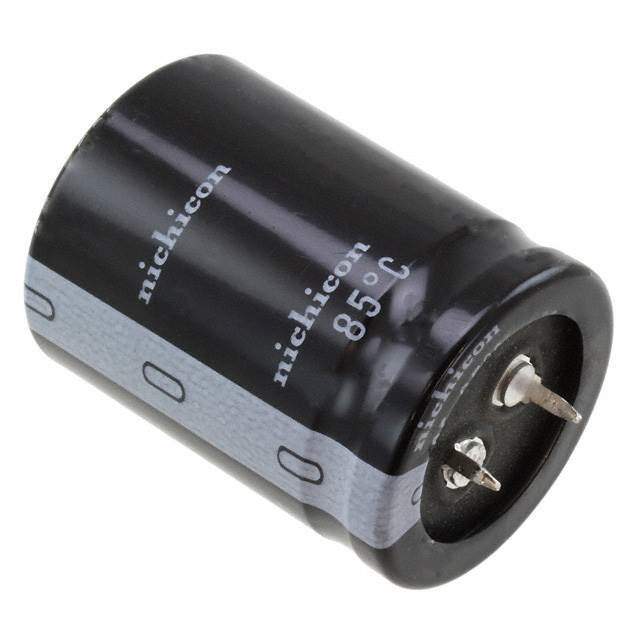

Same model may have multiple batches, images only for reference.

LLS1H103MELB

Name: LLS1H103MELB
Brand: Nichicon
SKU: 1337522
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LLS1H103MELB
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 10000UF 20% 50V SNAP / 10000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 85°C
Datasheet	LLS1H103MELB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LLS
Package	Bulk
Capacitance	10000 µF
Tolerance	±20%
Voltage - Rated	50 V
Lifetime @ Temp.	3000 Hrs @ 85°C
Temperature Range - Operating	-40°C ~ 85°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	5.08 A @ 120 Hz
Ripple Current @ High Frequency	5.842 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	1.181" Dia (30.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	200
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1337522-LLS1H103MELB
Ultra Librarian 3D Model	Ultra Librarian LLS1H103MELB CAD Model

Description

The Nichicon LLS1H103MELB is an aluminum electrolytic capacitor with a capacitance of 10000 µF and a voltage rating of 50 V.

Tolerance: ±20%
Ripple Current: 5.08 A @ 120 Hz and 5.842 A @ 50 kHz
Package: Radial, Can-Snap-In
Mounting Type: Through Hole
Height (Seated): 1.654" (42.00mm)
Diameter: 1.181" (30.00mm)
Lifetime: 3000 Hrs @ 85°C
ECCN: EAR99
REACH Status: REACH Unaffected
MSL Level: Not Applicable
HTSUS: 8532.22.0040
