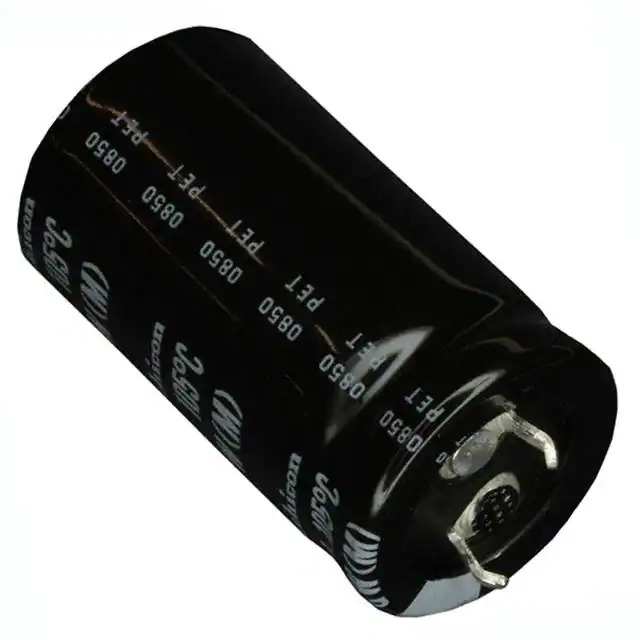

Same model may have multiple batches, images only for reference.
LGW2G121MELZ30 Nichicon
Same model may have multiple batches, images only for reference.

LGW2G121MELZ30

Part No LGW2G121MELZ30
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 120UF 20% 400V SNAP / 120 µF 400 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2G121MELZ30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Bulk
Product Status Active
Capacitance 120 µF
Tolerance ±20%
Voltage - Rated 400 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -25°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.22 A @ 120 Hz
Ripple Current @ High Frequency 1.7446 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360709-LGW2G121MELZ30
Ultra Librarian 3D Model Ultra Librarian LGW2G121MELZ30 CAD Model

Description

The LGW2G121MELZ30 is a capacitor manufactured by Nichicon.

  • Series: LGW
  • Application: General Purpose
  • Capacitance: 120 µF
  • Voltage Rating: 400 V
  • Temperature Range: -25°C to 105°C
  • Lifetime: 3000 hours @ 105°C
  • Package: Radial, Can - Snap-In
  • Mounting Type: Through Hole
  • Lead Spacing: 0.394" (10.00mm)
  • Size/Dimension: 0.866" Dia (22.00mm)
  • Ripple Current (Low Frequency): 1.22 A @ 120 Hz
  • Ripple Current (High Frequency): 1.7446 A @ 50 kHz
  • REACH: Unaffected
  • ECCN: EAR99
  • Polarization: Required
