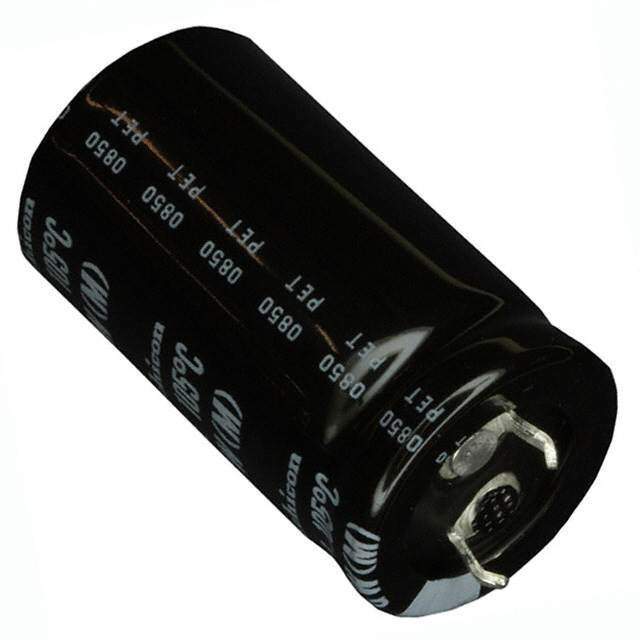

LGW2D471MELZ30 Real Image
Same model may have multiple batches, images only for reference.

LGW2D471MELZ30

Part No LGW2D471MELZ30
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 470UF 20% 200V SNAP / 470 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGW2D471MELZ30 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGW
Package Bulk
Capacitance 470 µF
Tolerance ±20%
Voltage - Rated 200 V
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 2.17 A @ 120 Hz
Ripple Current @ High Frequency 3.255 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.181" (30.00mm)
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
Standard Package 250
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1351990-LGW2D471MELZ30
Ultra Librarian 3D Model Ultra Librarian LGW2D471MELZ30 CAD Model

Description

The Nichicon LGW series capacitor is a radial, can snap-in type capacitor with a capacitance of 470 µF and voltage rating of 200 V. Nichicon

  • Series: LGW
  • Capacitance: 470 µF
  • Voltage Rating: 200 V
  • Tolerance: ±20%
  • ESR: Not mentioned
  • Ripple Current (Low Frequency): 2.17 A
  • Ripple Current (High Frequency): 3.255 A
  • Application: General Purpose
  • Lifetime: 3000 hours @ 105°C
  • Diameter: 0.866" (22.00mm)
  • Height: 1.181" (30.00mm)
  • Lead Spacing: 0.394" (10.00mm)
  • Polarization: Polarized
  • Mounting: Through-Hole
  • Package: Bulk
  • Temperature Range: -40°C to 105°C
  • REACH: Unaffected
