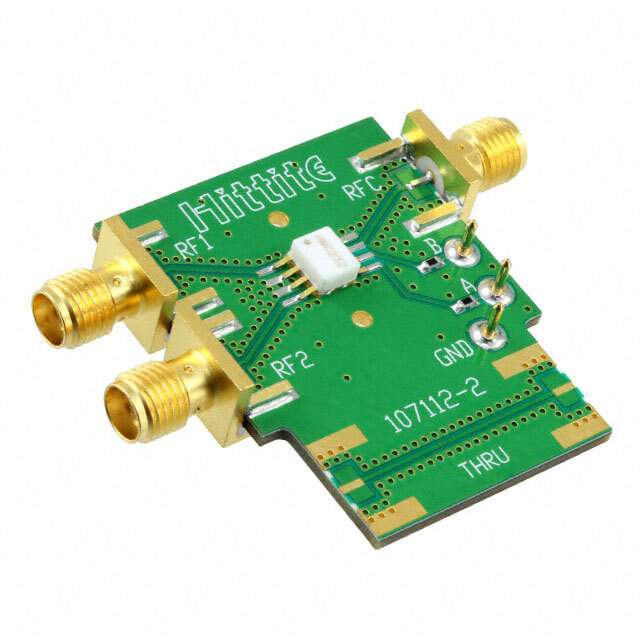

The HMC232C8 from Analog Devices Inc. is a high-performance Gallium Arsenide (GaAs) Monolithic Microwave Integrated Circuit (MMIC) Single-Pole Double-Throw (SPDT) switch. This component is designed for use in a variety of RF and microwave applications, including military and space, telecommunications, and test equipment.

Key Features

• Frequency Range: The HMC232C8 operates over a broad frequency range, making it suitable for a wide array of applications.
• High Isolation: It offers high isolation between ports, which minimizes signal leakage and maintains signal integrity.
• Low Insertion Loss: The low insertion loss characteristic of the HMC232C8 ensures minimal attenuation of the signal as it passes through the switch.
• Non-Reflective Design: Its non-reflective design helps to reduce signal reflections that can degrade overall system performance.
• High Linearity: Exhibiting high linearity, this switch is capable of handling high power levels without significant distortion.
• CMOS/TTL Compatible: The control interface is compatible with CMOS/TTL logic levels, facilitating easy integration with digital systems.

Applications

The versatility of the HMC232C8 makes it an excellent choice for a variety of applications:

• Test and measurement equipment
• Telecommunications systems
• Satellite communications
• Wireless infrastructure
• Defense and aerospace platforms

Product Specifications

With its robust design and high-performance features, the HMC232C8 is an ideal choice for engineers and designers looking for a reliable SPDT switch for their high-frequency applications.
