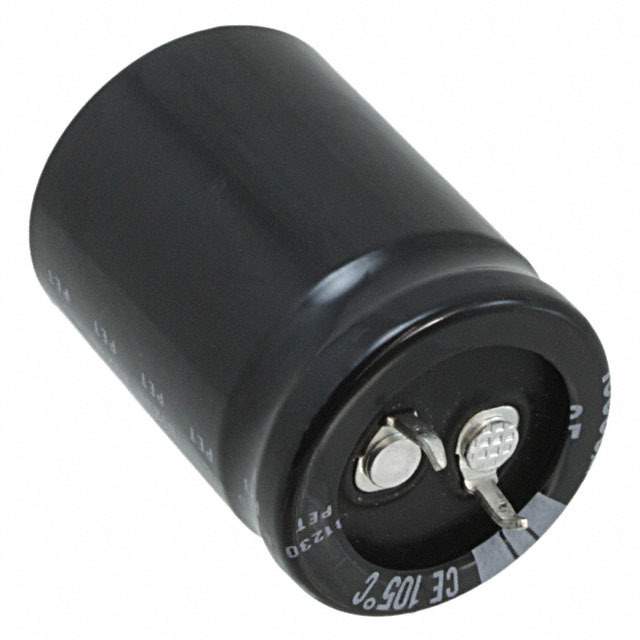

Same model may have multiple batches, images only for reference.

LGU1V682MELA

Name: LGU1V682MELA
Brand: Nichicon
SKU: 1350079
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGU1V682MELA
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 6800UF 20% 35V SNAP / 6800 µF 35 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGU1V682MELA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGU
Package	Bulk
Capacitance	6800 µF
Tolerance	±20%
Voltage - Rated	35 V
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2.31 A @ 120 Hz
Ripple Current @ High Frequency	2.6565 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.457" (37.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
Standard Package	250
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1350079-LGU1V682MELA
Ultra Librarian 3D Model	Ultra Librarian LGU1V682MELA CAD Model

Description

The LGU1V682MELA is an Aluminum Electrolytic Capacitor from Nichicon that features a capacitance of 6800 µF.

Voltage Rating: 35 V
Tolerance: ±20%
Diameter: 0.984"
Height: 1.457"
Package: Radial, Can - Snap-In
Standard Package: 250
Application: Capacitors - Aluminum Electrolytic Capacitors
