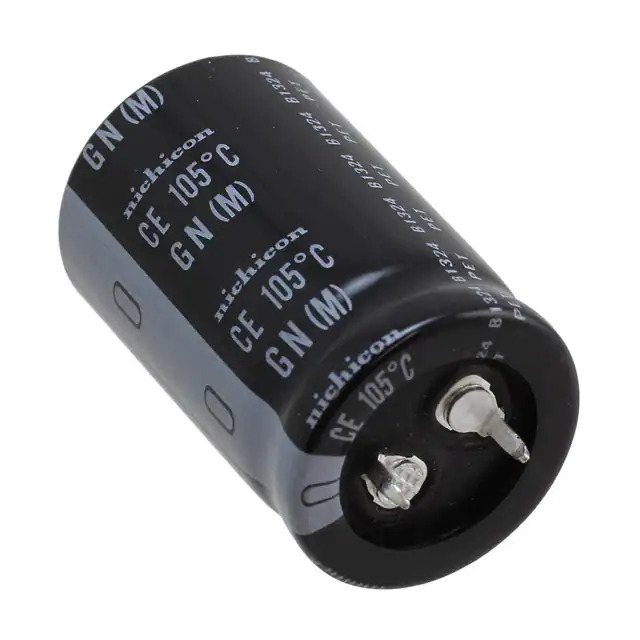

Same model may have multiple batches, images only for reference.

LGN2W221MELA40

Name: LGN2W221MELA40
Brand: Nichicon
SKU: 1360720
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	LGN2W221MELA40
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 220UF 20% 450V SNAP / 220 µF 450 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet	LGN2W221MELA40 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors - Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGN
Package	Bulk
Product Status	Active
Capacitance	220 µF
Tolerance	±20%
Voltage - Rated	450 V
ESR (Equivalent Series Resistance)	-
Lifetime @ Temp.	3000 Hrs @ 105°C
Temperature Range - Operating	-25°C ~ 105°C
Polarization	Polar
Ratings	-
Applications	General Purpose
Ripple Current @ Low Frequency	1.05 A @ 120 Hz
Lead Spacing	0.394" (10.00mm)
Size / Dimension	0.984" Dia (25.00mm)
Height - Seated (Max)	1.654" (42.00mm)
Surface Mount Land Size	-
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Win Source Part Number	1360720-LGN2W221MELA40
Ultra Librarian 3D Model	Ultra Librarian LGN2W221MELA40 CAD Model

Description

The LGN2W221MELA40 is an aluminum electrolytic capacitor manufactured by Nichicon.

Series: LGN
Application: General Purpose
Capacitance: 220 µF
Voltage Rating: 450 V
Temperature Range: -25°C to 105°C
Lifetime: 3000 hours @ 105°C
Package: Radial, Can - Snap-In
Mounting: Through Hole
Lead Spacing: 0.394" (10.00mm)
Size/Dimension: 0.984" Dia (25.00mm)
Ripple Current: 1.05 A @ Low Frequency (120 Hz)
Polarization: Required
