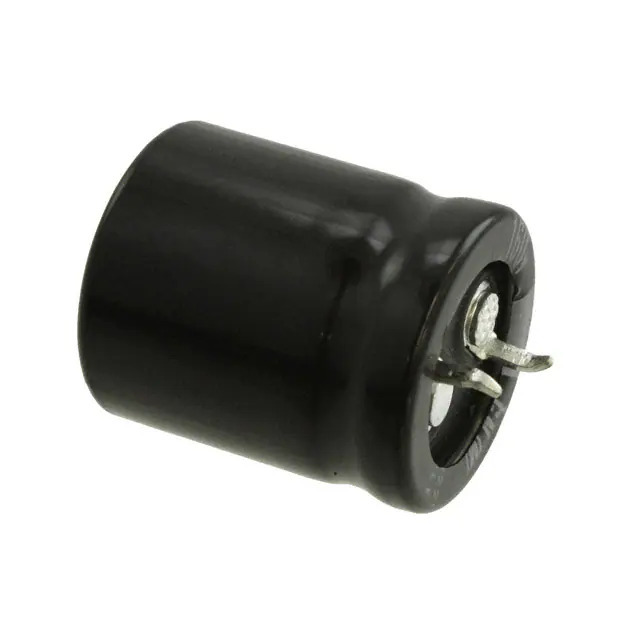

LGN2D391MELZ25 Nichicon
Same model may have multiple batches, images only for reference.

LGN2D391MELZ25

Part No LGN2D391MELZ25
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description CAP ALUM 390UF 20% 200V SNAP / 390 µF 200 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 3000 Hrs @ 105°C
Datasheet
LGN2D391MELZ25 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum Electrolytic Capacitors
Mfr Nichicon
Series LGN
Package Bulk
Product Status Active
Capacitance 390 µF
Tolerance ±20%
Voltage - Rated 200 V
ESR (Equivalent Series Resistance) -
Lifetime @ Temp. 3000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 1.31 A @ 120 Hz
Ripple Current @ High Frequency 1.965 A @ 50 kHz
Lead Spacing 0.394" (10.00mm)
Size / Dimension 0.866" Dia (22.00mm)
Height - Seated (Max) 1.063" (27.00mm)
Surface Mount Land Size -
Mounting Type Through Hole
Package / Case Radial, Can - Snap-In
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0040
Win Source Part Number 1360787-LGN2D391MELZ25
Ultra Librarian 3D Model Ultra Librarian LGN2D391MELZ25 CAD Model

Description

The LGN2D391MELZ25 is a radial, can - snap-in aluminum electrolytic capacitor from Nichicon.

  • Capacitance: 390 µF
  • Voltage Rating: 200 V
  • Operating Temperature: -40°C to 105°C
  • Application: General Purpose
  • Tolerance: ±20%
  • Ripple Current @ Low Frequency: 1.31 A @ 120 Hz
  • Ripple Current @ High Frequency: 1.965 A @ 50 kHz
  • Lead Spacing: 0.394" (10.00mm)
  • Size: 0.866" Dia (22.00mm)
  • Height: 1.063" (27.00mm)
  • Mounting Type: Through Hole
  • Package: Bulk
  • Lifetime: 3000 hours @ 105°C
  • Status: Active
  • REACH Regulations: Unaffected
