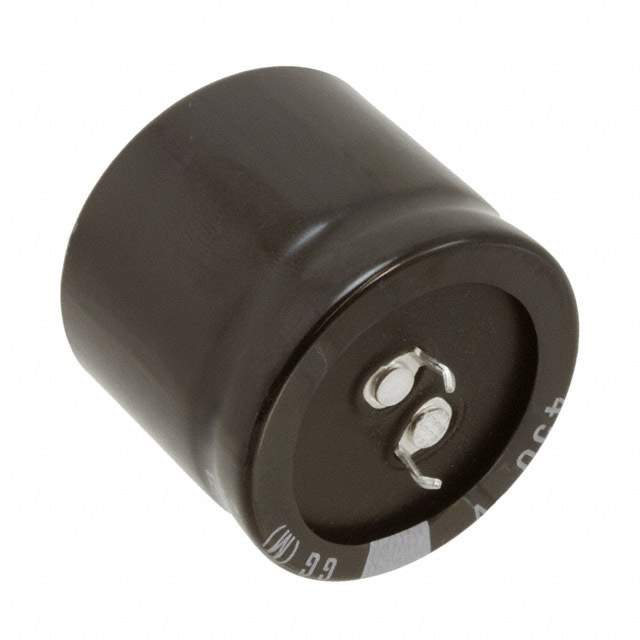

Same model may have multiple batches, images only for reference.

LGG2E102MELC30

Name: LGG2E102MELC30
Brand: Nichicon
SKU: 1025289
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	LGG2E102MELC30
Manufacturer	Nichicon
Catalog	Aluminum Capacitors
Description	CAP ALUM 1000UF 20% 250V SNAP / 1000 µF 250 V Aluminum Electrolytic Capacitors Radial, Can - Snap-In 2000 Hrs @ 105°C
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Capacitors>Aluminum Electrolytic Capacitors
Mfr	Nichicon
Series	LGG
Package	Bulk
Capacitance	1000 µF
Tolerance	±20%
Voltage - Rated	250 V
Lifetime @ Temp.	2000 Hrs @ 105°C
Temperature Range - Operating	-40°C ~ 105°C
Polarization	Polar
Applications	General Purpose
Ripple Current @ Low Frequency	2 A @ 120 Hz
Ripple Current @ High Frequency	3 A @ 50 kHz
Lead Spacing	0.394" (10.00mm)
Dimension	1.378" Dia (35.00mm)
Height - Seated (Max)	1.260" (32.00mm)
Mounting Type	Through Hole
Package / Case	Radial, Can - Snap-In
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8532.22.0040
Other Names	LGG2E102MELC30-ND,493-8170
Standard Package	200
Win Source Part Number	1025289-LGG2E102MELC30
Ultra Librarian 3D Model	Ultra Librarian LGG2E102MELC30 CAD Model

Description

The LGG series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 1000 µF
Voltage Rating: 250 V
Series: LGG series
Polarization: Polarized
Mounting Type: Through-Hole
Lead Spacing: 0.394" (10.00mm)
Height: 1.260" (32.00mm)
ESR (Equivalent Series Resistance): -
Lifetime: 2000 Hrs @ 105°C
Package: Radial, Can-Snap-In
Ripple Current: 2 A @ 120 Hz and 3 A @ 50 kHz
Manufacturer: Nichicon
Also Known As: LGG2E102MELC30-ND, 493-8170
