RB520S30,115
Same model may have multiple batches, images only for reference.

RB520S30,115

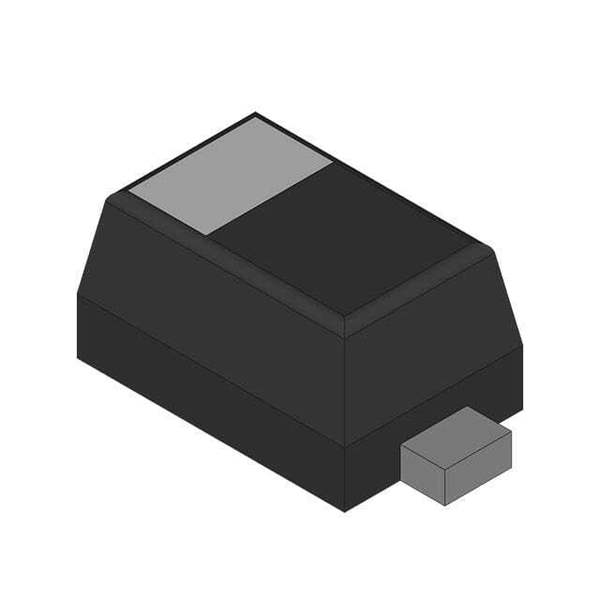

Part No RB520S30,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOD523
Datasheet
RB520S30,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100
Package Tape & Reel
Product Status Active
Technology Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 600 mV @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr 1 µA @ 10 V
Capacitance @ Vr, F 20pF @ 1V, 1MHz
Mounting Type Surface Mount
Package / Case SC-79, SOD-523
Supplier Device Package SOD-523
Operating Temperature - Junction 150°C (Max)
Base Product Number RB520S30
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 891235-RB520S30,115
Ultra Librarian 3D Model Ultra Librarian RB520S30,115 CAD Model

Description

The RB520S30,115 is a Schottky diode designed for rectification applications.

  • Maximum DC Reverse Voltage (Vr): 30V
  • Average Rectified Current (Io): 200mA
  • Forward Voltage (Vf): 600mV @ 200mA
  • Mounting: surface mountable
  • Package: SC-79, SOD-523
  • Maximum Operating Temperature: 150°C
  • Status: active
  • Manufacturer: Nexperia USA Inc.
  • Performance: reliable and high-quality
