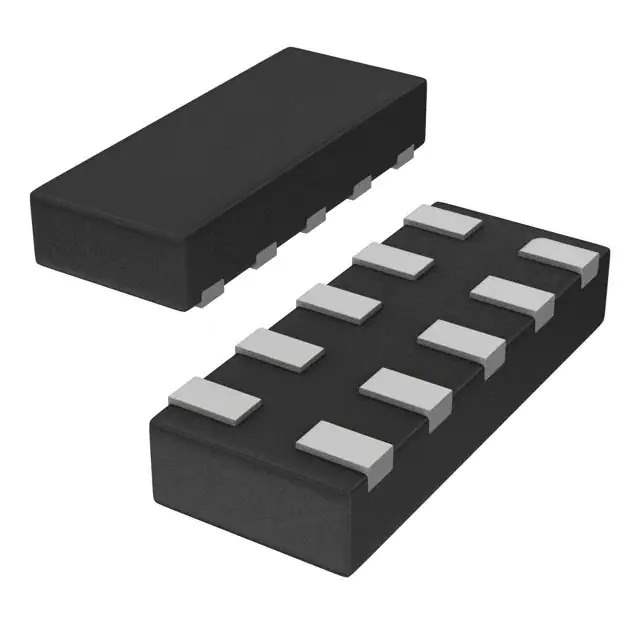

Same model may have multiple batches, images only for reference.

PUSB3FR4Z

Name: PUSB3FR4Z
Brand: Nexperia USA Inc.
SKU: 740877
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PUSB3FR4Z
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 3.3VWM 3VC DFN2510A-10
Datasheet	PUSB3FR4Z Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr	Nexperia USA Inc.
Package	Tape & Reel
Product Status	Active
Type	Zener
Unidirectional Channels	4
Voltage - Reverse Standoff (Typ)	3.3V (Max)
Voltage - Breakdown (Min)	5.5V
Voltage - Clamping (Max) @ Ipp	3V (Typ)
Current - Peak Pulse (10/1000µs)	5A (8/20µs)
Power Line Protection	No
Applications	HDMI
Temperature Range - Operating	-40°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	10-XFDFN
Supplier Device Package	DFN2510A-10
Base Product Number	PUSB3
Standard Package	5,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Win Source Part Number	740877-PUSB3FR4Z
Ultra Librarian 3D Model	Ultra Librarian PUSB3FR4Z CAD Model

Alternative Products

Description

The 740877-PUSB3FR4Z is a Zener type transient voltage suppressor (TVS) diode designed for circuit protection in HDMI applications.

Voltage Reverse Standoff: 3.3V (Maximum)
Voltage Breakdown: 5.5V (Minimum)
Clamping Voltage: 3V (Typical) @ Peak Pulse Current
Peak Pulse Current: 5A (10/1000µs)
Package Type: Surface Mount (10-XFDFN)
Packaging: Tape and Reel
Standard Package Quantity: 5,000 pcs
Operating Temperature: -40°C to 85°C (TA)
Manufacturer: Nexperia USA Inc.
Status: Active
