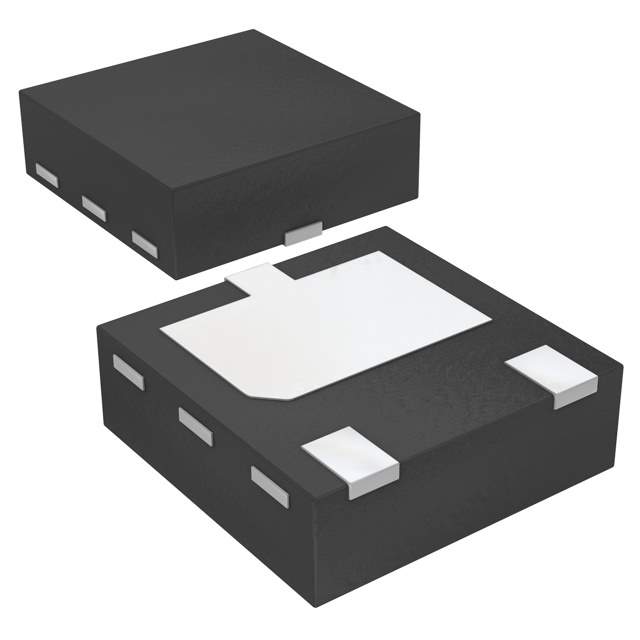

PTVS26VU1UPAZ

Name: PTVS26VU1UPAZ
Brand: Nexperia USA Inc.
SKU: 991068
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PTVS26VU1UPAZ
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 26VWM 42.1VC 3HUSON / 42.1V Clamp 7A Ipp Tvs Diode Surface Mount 3-HUSON (2x2)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Unidirectional Channels	1
Voltage - Reverse Standoff (Typ)	26V (Max)
Voltage - Breakdown (Min)	28.9V
Voltage - Clamping (Max) @ Ipp	42.1V
Current - Peak Pulse (10/1000µs)	7A
Power - Peak Pulse	300W
Power Line Protection	No
Applications	Automotive
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting	SMD (SMT)
Package / Case	3-PowerUDFN
Supplier Device Package	3-HUSON (2x2)
Base Product Number	PTVS26
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	568-11467-2-ND,PTVS26VU1UPAZ-ND,568-11467-6,1727-1831-2,1727-1831-1,568-11467-6-ND,568-11467-1,568-11467-2,568-11467-1-ND,1727-1831-6,934068084147
Standard Package	3,000
Win Source Part Number	991068-PTVS26VU1UPAZ
Ultra Librarian 3D Model	Ultra Librarian PTVS26VU1UPAZ CAD Model

Alternative Products

Description

This is a TVS-Diode that belongs to the circuit protection category.

Win Source Part Number: 991068-PTVS26VU1UPAZ
Category: Automotive, AEC-Q101 series, Zener type
Package: Tape and Reel
Mounting: SMD (SMT)
Channel: Unidirectional, 1
Voltage - Reverse Standoff (Typ): 26V (Max)
Voltage - Breakdown (Min): 28.9V
Voltage - Clamping (Max) @ Ipp: 42.1V
Power - Peak Pulse: 300W
Current - Peak Pulse (10/1000µs): 7A
Package/Case: 3-PowerUDFN
Supplier Device Package: 3-HUSON (2x2)
Temperature Range: -55°C ~ 150°C (TA)
