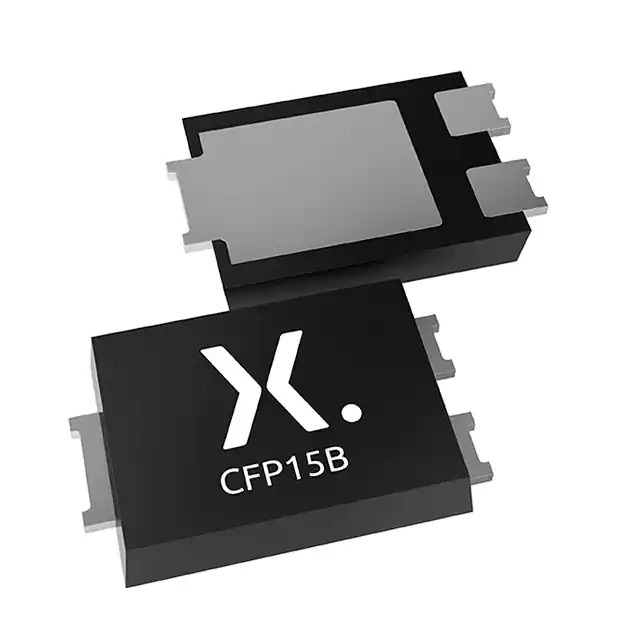

PNE20060CPEZ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

PNE20060CPEZ

Part No PNE20060CPEZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description PNE20060CPE/SOT1289B/CFP15
Datasheet
PNE20060CPEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Diode Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Active
Diode Configuration 1 Pair Common Cathode
Technology Standard
Voltage - DC Reverse (Vr) (Max) 200 V
Current - Average Rectified (Io) (per Diode) 3A
Voltage - Forward (Vf) (Max) @ If 940 mV @ 3 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 30 ns
Current - Reverse Leakage @ Vr 1 µA @ 200 V
Operating Temperature - Junction 175°C (Max)
Mounting Type Surface Mount
Package / Case TO-277, 3-PowerDFN
Supplier Device Package CFP15B
Base Product Number PNE20060
MSL Level 3 (168 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1366927-PNE20060CPEZ
Ultra Librarian 3D Model Ultra Librarian PNE20060CPEZ CAD Model

Description

The PNE20060CPEZ is a diode array manufactured by Nexperia USA Inc.

  • Automotive Series: Automotive, AEC-Q101 Standard
  • Package: TO-277, 3-PowerDFN, Surface Mount
  • Maximum DC Reverse Voltage: 200 V
  • Forward Voltage: 940 mV @ 3 A
  • Recovery Time: Less than 500 ns (Fast)
  • Reverse Recovery Time: 30 ns
  • Current Leakage: 1 μA @ 200 V
  • Maximum Junction Temperature: 175°C
  • Configuration: 1 pair common cathode
  • Average Rectified Current: 3 A per diode
  • Product Status: Active
  • REACH Status: Unaffected
  • Applications: Rectifiers and Diode Arrays in Automotive Electronics
