The ADG201AKRZ is a monolithic CMOS device comprising four independently selectable switches, designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This analog switch is well-suited for a wide range of applications due to its high precision and low power consumption.

Key Features

• Low Power Consumption: The ADG201AKRZ operates with minimal power requirements, making it ideal for battery-powered and portable devices.
• Wide Supply Range: It can function with a dual supply of ±5 V to ±15 V or a single supply of 10 V to 30 V, providing flexibility in various circuit designs.
• High Switching Speed: With fast transition times, this switch can handle high-frequency signals without significant delays, ensuring efficient operation in time-critical applications.
• Low Charge Injection: The device exhibits low charge injection, which minimizes signal distortion and improves overall performance in precision applications.
• Low On Resistance: The switch features a low on resistance, which is flat over the full analog signal range, providing excellent linearity and low signal attenuation.

Applications

The ADG201AKRZ is versatile and can be used in various applications, including:

• Sample and hold circuits
• Audio and video switching
• Test equipment and instrumentation
• Communication systems
• Analog and digital multiplexing

Product Specifications

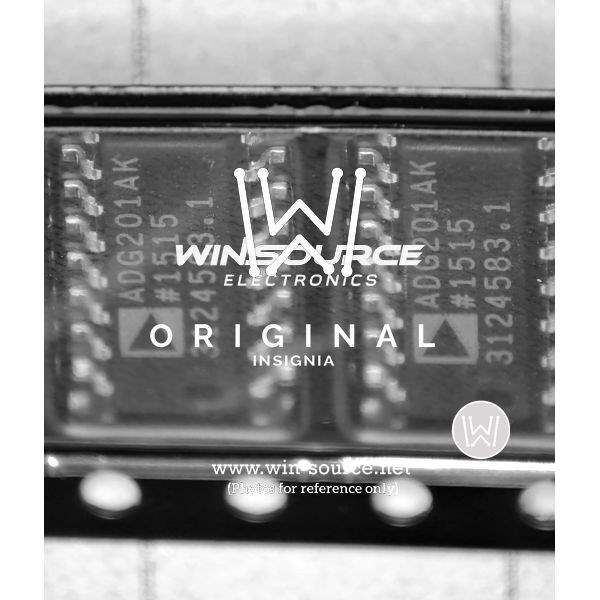

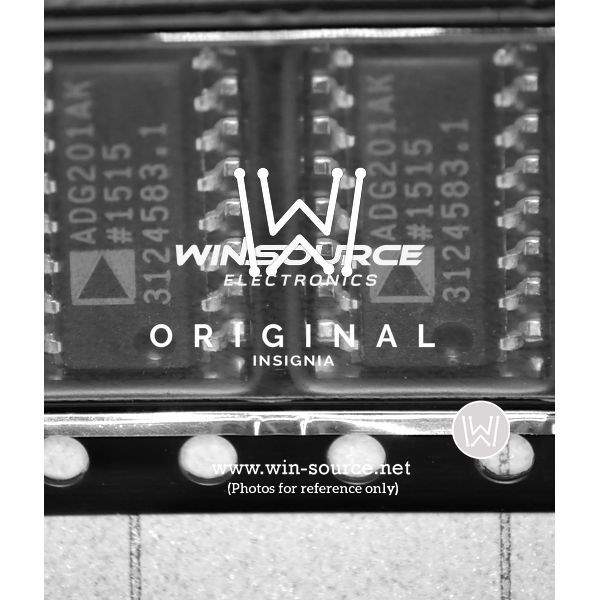

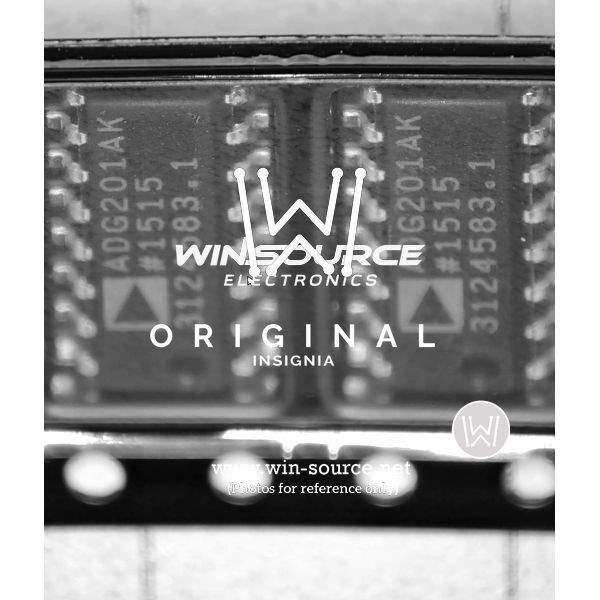

The ADG201AKRZ comes in a compact 16-pin SOIC package, which is suitable for surface-mount technology. Its robust design ensures reliable performance in even the most demanding environments. The switch provides excellent thermal performance and is characterized for operation from -40°C to +85°C, ensuring reliability across a wide range of temperatures.

Ordering Information

For purchasing and further information about the ADG201AKRZ, visit the Analog Devices Inc. website or contact an authorized distributor. The product is available in tube or tape and reel packaging, facilitating easy integration into manufacturing processes.
