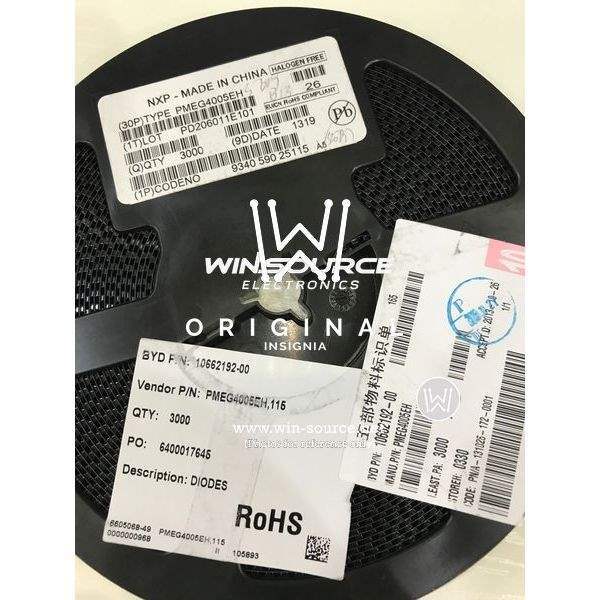

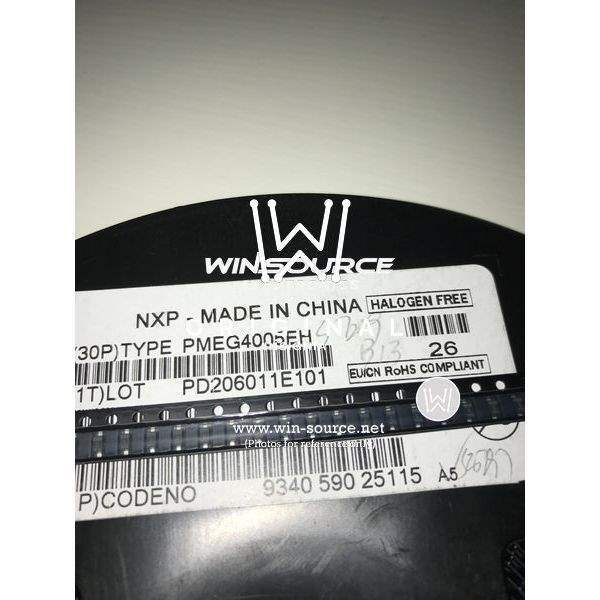

PMEG4005EH,115 Nexperia USA Inc. PMEG4005EH,115 label picture PMEG4005EH,115 real image
Same model may have multiple batches, images only for reference.
PMEG4005EH,115 Nexperia USA Inc. PMEG4005EH,115 label picture PMEG4005EH,115 real image
PMEG4005EH,115 Nexperia USA Inc. PMEG4005EH,115 label picture PMEG4005EH,115 real image
Same model may have multiple batches, images only for reference.

PMEG4005EH,115

Part No PMEG4005EH,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 500MA SOD123F
Datasheet
PMEG4005EH,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40V
Current - Average Rectified (Io) 500mA (DC)
Voltage - Forward (Vf) (Max) @ If 470mV @ 500mA
Speed(Frequency) Fast Recovery = 200mA (Io)
Current - Reverse Leakage @ Vr 100μA @ 40V
Capacitance @ Vr, F 50pF @ 1V, 1MHz
Mounting SMD (SMT)
Case / Package SOD-123F
Operating Temperature - Junction 150°C (Max)
Win Source Part Number 1089611-PMEG4005EH,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian PMEG4005EH,115 CAD Model

Description

The PMEG4005EH,115 is a Schottky diode manufactured by Nexperia USA Inc.

  • Maximum Reverse Voltage: 40V
  • Average Rectified Current: 500mA
  • Forward Voltage: 470mV @ 500mA
  • Recovery Frequency: 200mA
  • Supply and Demand Status: Sufficient
  • Packaging: SMD (SMT)
  • Case/Package: SOD-123F
