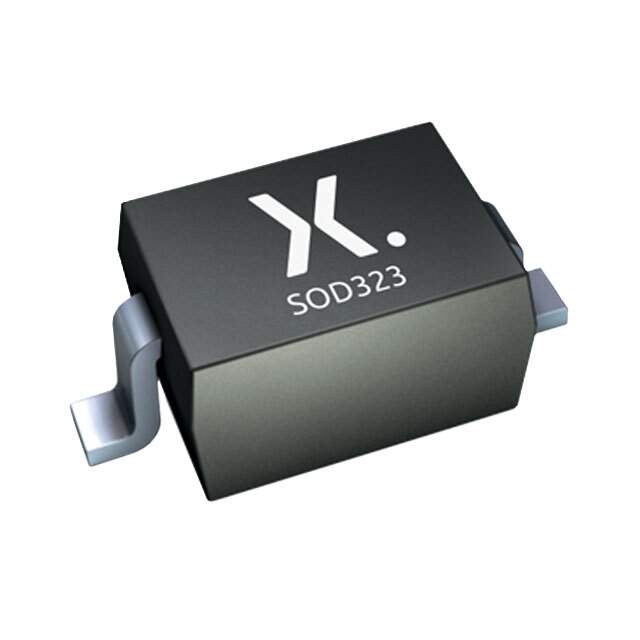

PMEG4005CEAX Real Image
Same model may have multiple batches, images only for reference.

PMEG4005CEAX

Part No PMEG4005CEAX
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 40V 500MA SOD323 / Diode Schottky 40 V 500mA Surface Mount SOD-323
Datasheet
PMEG4005CEAX Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 40 V
Current - Average Rectified (Io) 500mA
Voltage - Forward (Vf) (Max) @ If 640 mV @ 500 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 1.8 ns
Current - Reverse Leakage @ Vr 8 µA @ 40 V
Capacitance @ Vr, F 24pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case SC-76, SOD-323
Supplier Device Package SOD-323
Operating Temperature - Junction 150°C (Max)
Base Product Number PMEG4005
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names NEXNEXPMEG4005CEAX,934070856115,1727-8168-6,2156-PMEG4005CEAX-NEX,1727-8168-2,1727-8168-1,PMEG4005CEAX-ND
Standard Package 3,000
Win Source Part Number 1085670-PMEG4005CEAX
Ultra Librarian 3D Model Ultra Librarian PMEG4005CEAX CAD Model

Description

The 1085670-PMEG4005CEAX is a Schottky diode with a DC reverse voltage of 40V and an average rectified current of 500mA.

  • DC Reverse Voltage: 40V
  • Average Rectified Current: 500mA
  • Forward Voltage: 640mV @ 500mA
  • Reverse Recovery Time: 1.8ns
  • Reverse Leakage Current: 8μA @ 40V
  • Capacitance: 24pF @ 1V and 1MHz
  • Operating Temperature: Up to 150°C
  • Package/Case: SC-76, SOD-323
  • Application: Rectifier
