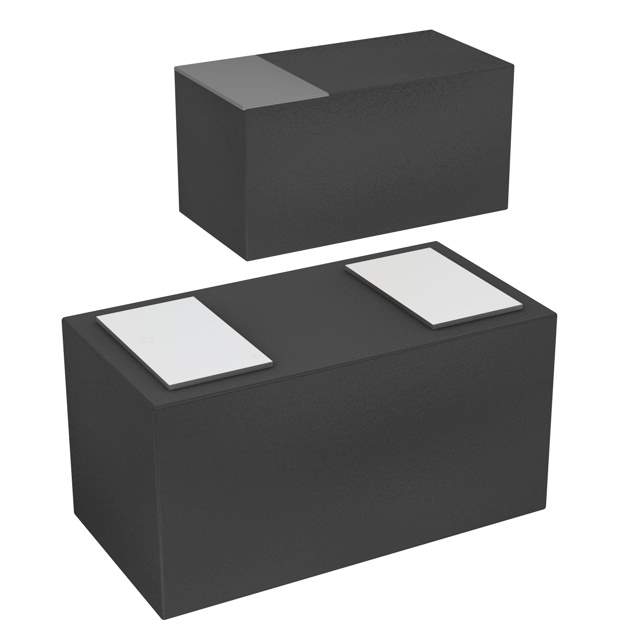

PMEG3002AESFYL Real Image
Same model may have multiple batches, images only for reference.

PMEG3002AESFYL

Part No PMEG3002AESFYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 0.2A SOD962 / Diode Schottky 30 V 200mA Surface Mount DSN0603-2
Datasheet
PMEG3002AESFYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Package Tape & Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA
Voltage - Forward (Vf) (Max) @ If 470 mV @ 200 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 1.37 ns
Current - Reverse Leakage @ Vr 80 µA @ 30 V
Capacitance @ Vr, F 22pF @ 1V, 1MHz
Mounting SMD (SMT)
Package / Case 0201 (0603 Metric)
Supplier Device Package DSN0603-2
Operating Temperature - Junction 150°C (Max)
Base Product Number PMEG3002
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 934068037315,568-12575-1-ND,568-12575-2-ND,1727-2289-1,1727-2289-2,568-12575-6,2156-PMEG3002AESFYL-1727,568-12575-1,568-12575-2,1727-2289-6,568-12575-6-ND
Standard Package 9,000
Win Source Part Number 1114674-PMEG3002AESFYL
Ultra Librarian 3D Model Ultra Librarian PMEG3002AESFYL CAD Model

Description

The Nexperia USA Inc. PMEG3002AESFYL is a small signal Schottky diode with a reverse voltage of 30 V and a forward voltage of 470 mV @ 200 mA.

  • Reverse Recovery Time: 1.37 ns
  • Capacitance: 22pF @ 1V, 1MHz
  • Operating Temperature Range: 150°C (Max)
  • Mounting Type: SMD (SMT)
  • Package/Case: 0201 (0603 Metric)
  • Supplier Device Package: DSN0603-2
  • Standard Package: 9,000
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8541.10.0070
