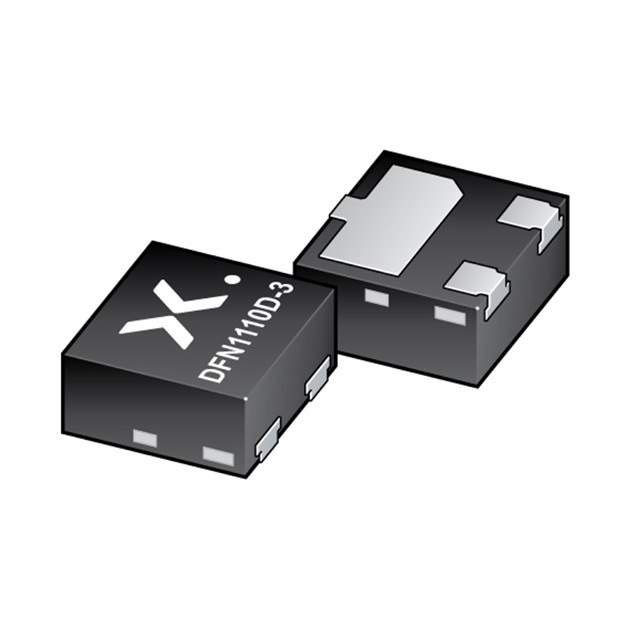

PESD2CANFD24V-QBZ

Name: PESD2CANFD24V-QBZ
Brand: Nexperia USA Inc.
SKU: 1000525
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PESD2CANFD24V-QBZ
Manufacturer	Nexperia USA Inc.
Catalog	TVS - Diodes
Description	TVS DIODE 24VWM 42VC DFN1110D-3 / 42V Clamp 2.6A (8/20µs) Ipp Tvs Diode Surface Mount, Wettable Flank DFN1110D-3
Datasheet	PESD2CANFD24V-QBZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Circuit Protection>TVS - Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel
Type	Zener
Bidirectional Channels	2
Voltage - Reverse Standoff (Typ)	24V (Max)
Voltage - Breakdown (Min)	25.5V
Voltage - Clamping (Max) @ Ipp	42V
Current - Peak Pulse (10/1000µs)	2.6A (8/20µs)
Power Line Protection	No
Applications	Automotive, CAN
Capacitance @ Frequency	5.2pF @ 1MHz
Temperature Range - Operating	-55°C ~ 150°C (TA)
Mounting Type	Surface Mount, Wettable Flank
Package / Case	3-XDFN Exposed Pad
Supplier Device Package	DFN1110D-3
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Names	934661608147,1727-PESD2CANFD24V-QBZCT,1727-PESD2CANFD24V-QBZTR,1727-PESD2CANFD24V-QBZDKR
Standard Package	5,000
Win Source Part Number	1000525-PESD2CANFD24V-QBZ
Ultra Librarian 3D Model	Ultra Librarian PESD2CANFD24V-QBZ CAD Model

Alternative Products

Description

The PESD2CANFD24V-QBZ is a bidirectional TVS diode designed for use in automotive circuits and CAN applications and is from Nexperia USA Inc.

Channel Type: Bidirectional
Reverse Standoff Voltage (Max): 24V
Breakdown Voltage (Min): 25.5V
Voltage Clamping (Max) @ Ipp: 42V
Capacitance @ Frequency: 5.2pF @ 1MHz
Current Peak Pulse (10/1000µs): 2.6A (8/20µs)
Package/Case: 3-XDFN Exposed Pad
Temperature Range: -55°C ~ 150°C (TA)
