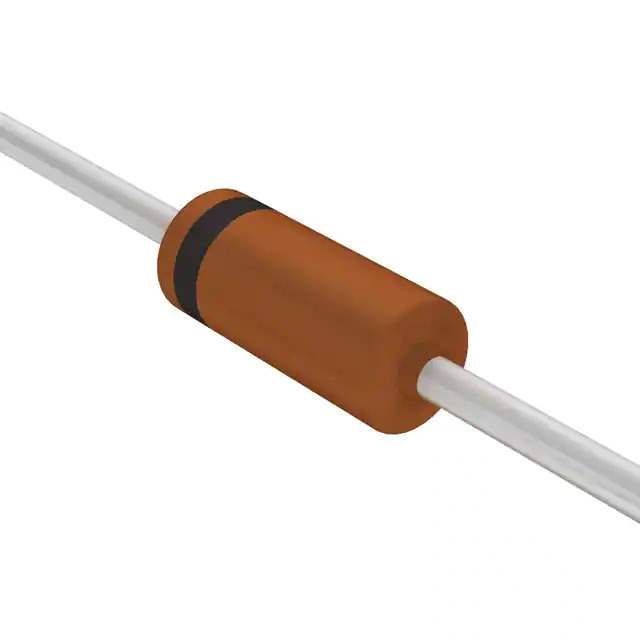

NZX20A,133

Name: NZX20A,133
Brand: Nexperia USA Inc.
SKU: 748058
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	NZX20A,133
Manufacturer	Nexperia USA Inc.
Catalog	Diodes - Zener - Single
Description	DIODE ZENER 19.25V 500MW ALF2
Datasheet	NZX20A,133 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr	Nexperia USA Inc.
Series	NZX
Package	Cut Tape (CT)Tape & Box (TB)
Product Status	Active
Voltage - Zener (Nom) (Vz)	19.25 V
Tolerance	±2%
Power - Max	500 mW
Impedance (Max) (Zzt)	60 Ohms
Current - Reverse Leakage @ Vr	50 nA @ 14 V
Voltage - Forward (Vf) (Max) @ If	1.5 V @ 200 mA
Temperature Range - Operating	-55°C ~ 175°C
Mounting Type	Through Hole
Package / Case	DO-204AH, DO-35, Axial
Supplier Device Package	ALF2
Base Product Number	NZX20
Standard Package	10,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0050
Win Source Part Number	748058-NZX20A,133
Ultra Librarian 3D Model	Ultra Librarian NZX20A,133 CAD Model

Alternative Products

Description

The 748058-NZX20A,133 is a single Zener diode used in discrete semiconductor products.

Series: NZX
Manufacturer: Nexperia USA Inc.
Package: cut tape (CT) or tape & box (TB)
Standard Package: 10,000 pieces
Tolerance: ±2%
Maximum Power: 500 mW
Forward Voltage: 1.5 V @ 200 mA
Reverse Leakage Current: 50 nA @ 14 V
Zener Voltage: 19.25 V
Maximum Impedance: 60 Ohms
Mounting: through-hole
Package: DO-204AH, DO-35, Axial
Temperature Range: -55°C to 175°C
HTSUS Code: 8541.10.0050
