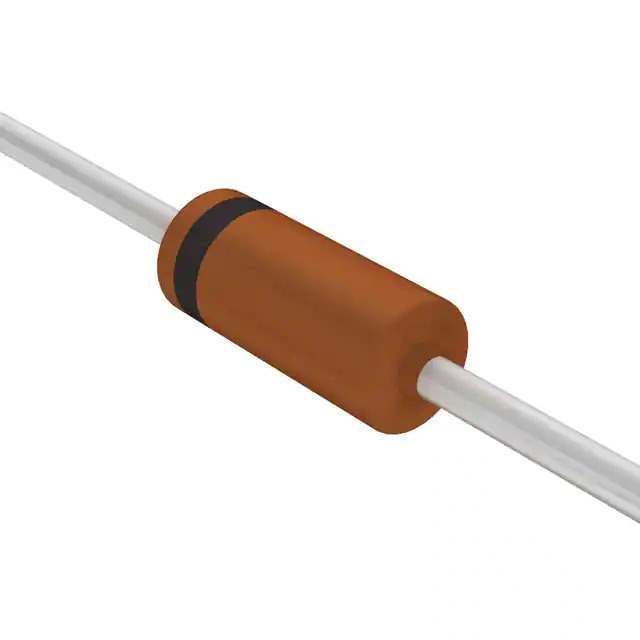

NZX16A,133 Real Image
Same model may have multiple batches, images only for reference.

NZX16A,133

Part No NZX16A,133
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 15.6V 500MW ALF2
Datasheet
NZX16A,133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Zener - Single Zener Diodes
Mfr Nexperia USA Inc.
Series NZX
Package Tape & Box (TB)
Product Status Active
Voltage - Zener (Nom) (Vz) 15.6 V
Tolerance ±2%
Power - Max 500 mW
Impedance (Max) (Zzt) 45 Ohms
Current - Reverse Leakage @ Vr 50 nA @ 11.2 V
Voltage - Forward (Vf) (Max) @ If 1.5 V @ 200 mA
Temperature Range - Operating -55°C ~ 175°C
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package ALF2
Base Product Number NZX16
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0050
Win Source Part Number 1167526-NZX16A,133
Ultra Librarian 3D Model Ultra Librarian NZX16A,133 CAD Model

Description

The 1167526-NZX16A,133 is a single Zener diode from the NZX series by Nexperia USA Inc. It is commonly used in electronic circuits that require voltage regulation. This diode is packaged in Tape & Box (TB) and has a standard package of 10,000 pieces. It has a tolerance of ±2% and a maximum power rating of 500 mW. The forward voltage is 1.5 V @ a current of 200 mA, and the reverse leakage current is 50 nA @ 11.2 V. The nominal Zener voltage is 15.6 V, and the impedance is 45 Ohms. The NZX16A,133 is suitable for through-hole mounting and operates in a temperature range of -55°C to 175°C.
