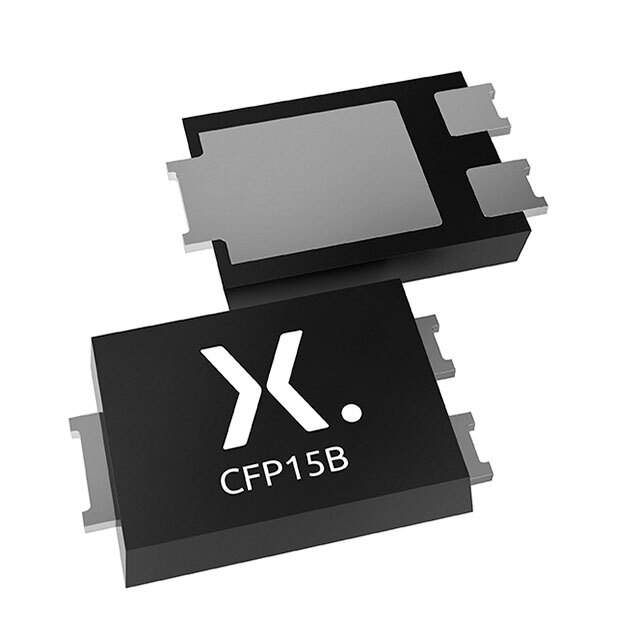

PMEG045V100EPDAZ

Name: PMEG045V100EPDAZ
Brand: Nexperia USA Inc.
SKU: 1325103
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	PMEG045V100EPDAZ
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 45V 10A CFP15 / Diode Schottky 45 V 10A Surface Mount CFP15
Datasheet	PMEG045V100EPDAZ Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer	Nexperia USA Inc.
Packaging	Reel - TR
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	45 V
Current - Average Rectified (Io)	10A
Voltage - Forward (Vf) (Max) @ If	490 mV @ 10 A
Speed	Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr)	37 ns
Current - Reverse Leakage @ Vr	50 µA @ 10 V
Capacitance @ Vr, F	1190pF @ 1V, 1MHz
Mounting	Surface Mount
Case / Package	TO-277, 3-PowerDFN
Supplier Device Package	CFP15
Operating Temperature - Junction	175°C (Max)
Base Product Number	PMEG045
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0080
Other Part Number	568-12692-6-ND,568-12692-2,568-12692-2-ND,568-12692-1,568-12692-1-ND,1727-2393-6,568-12692-6,1727-2393-2,1727-2393-1,934067176139
Standard Package	5,000
Win Source Part Number	1325103-PMEG045V100EPDAZ
Ultra Librarian 3D Model	Ultra Librarian PMEG045V100EPDAZ CAD Model

Alternative Products

Description

The Nexperia PMEG045V100EPDAZ is a surface mount Schottky diode with a maximum reverse voltage of 45V and an average rectified current of 10A.

Forward Voltage: 490mV @ 10A
Reverse Recovery Time: 37ns
Reverse Leakage Current: 50 microampere @ 10V
Capacitance: 1190pF @ 1V and 1MHz
Package: TO-277
Compliance: RoHS3 compliant
Ideal for: Use in rectification and power management applications
