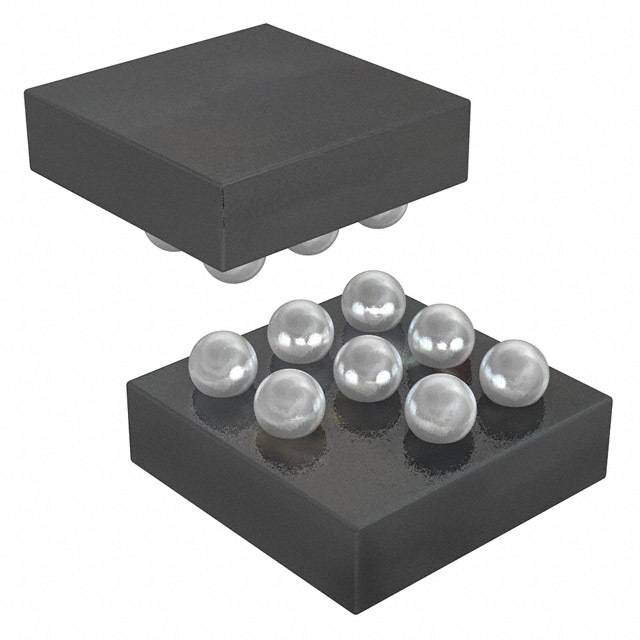

Same model may have multiple batches, images only for reference.
IP4366CX8/P,135 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4366CX8/P,135

Part No IP4366CX8/P,135
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) ESD SMD
Datasheet
IP4366CX8/P,135 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Resistance - Channel (Ohms) 47, 100
Values R = 47 Ohms, 100 Ohms, C = 17pF (Total)
ESD Protection Yes
Temperature Range - Operating -35°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.046" L x 0.046" W (1.16mm x 1.16mm)
Height 0.026" (0.65mm)
Win Source Part Number 1045698-IP4366CX8/P,135
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 4,500
Ultra Librarian 3D Model Ultra Librarian IP4366CX8/P,135 CAD Model

Description

The Nexperia USA Inc. IP4366CX8/P,135 is a low pass filter suitable for data lines for mobile devices.

  • Type: RC (Pi)
  • Height: 0.026" (0.65mm)
  • Channels: Three
  • Resistance: 47 Ohms and 100 Ohms
  • Capacitance: 17pF (Total)
  • ESD Protection: Yes
  • Operating Temperature Range: -35°C to 85°C
  • Package: 0.046" L x 0.046" W (1.16mm x 1.16mm)
  • Mounting: SMD (SMT)
  • Filter Order: 2nd.
