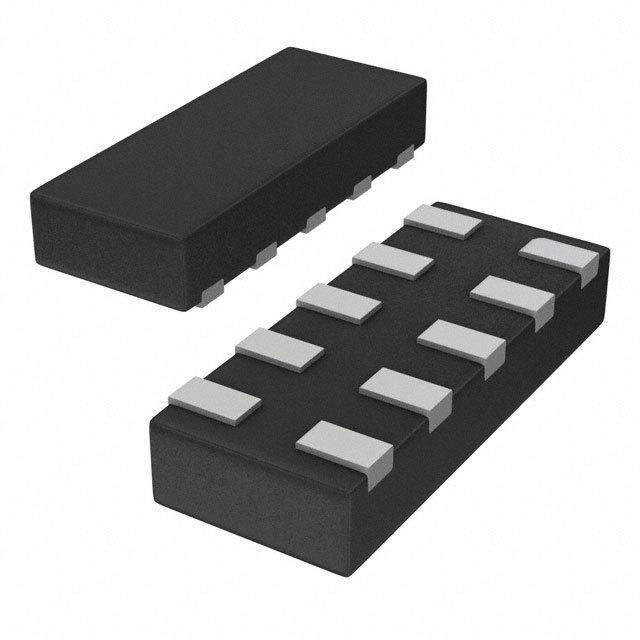

IP4292CZ10-TBR,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4292CZ10-TBR,115

Part No IP4292CZ10-TBR,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description TVS DIODE 5.5VWM 4VC 10DFN / ESD Suppressor Diode Array Uni-Dir 5.5V 10-Pin XSON T/R
Datasheet
IP4292CZ10-TBR,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel package
Type Steering (Rail to Rail)
Unidirectional Channels 4
Voltage - Reverse Standoff (Typ) 5.5V
Minimum Breakdown Voltage 6V
Maximum Clamping Voltage 4V (Typ)
Current - Peak Pulse (10/1000μs) 4A (8/20μs)
Power Line Protection Yes
Applications General
Operating Temperature Range -40°C ~ 85°C (TA)
Mounting SMD
Package 10-XFDFN
Manufacturer Package 10-DFN (2.5x1)
Win Source Part Number 776825-IP4292CZ10-TBR,115
Popularity Medium
Supply and Demand Status Limited
Family Name IP4292CZ10-TBR
Introduction Date July 08, 2011
ECCN EAR99
Country of Origin China, Thailand
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian IP4292CZ10-TBR,115 CAD Model

Description

The Nexperia USA Inc. IP4292CZ10-TBR,115 is a steering (rail to rail) type circuit protection device that comes in a 10-XFDFN package.

  • Type: Unidirectional
  • Channels: 4
  • Breakdown Voltage: 6V (minimum)
  • Voltage Reverse Standoff: 5.5V
  • Clamping Voltage: 4V (typ)
  • Protection: Power line
  • Operating Temperature: -40°C to 85°C (TA)
  • Applications: General
  • Mounting: SMD
  • Status: Limited supply and demand, estimated EOL date is 2026
