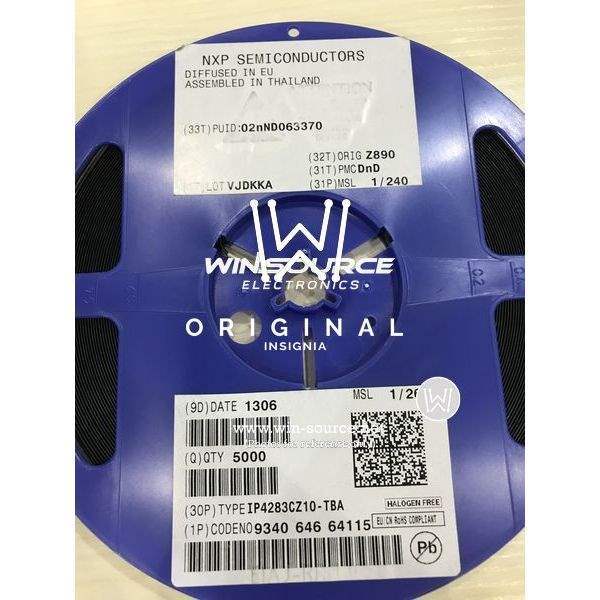

IP4283CZ10-TBA,115 Nexperia USA Inc. IP4283CZ10-TBA,115 label picture IP4283CZ10-TBA,115 label picture 2 IP4283CZ10-TBA,115 label picture 3 IP4283CZ10-TBA,115 label picture 4 IP4283CZ10-TBA,115 real image IP4283CZ10-TBA,115 real image 2 IP4283CZ10-TBA,115 real image 3 IP4283CZ10-TBA,115 label picture 5
Same model may have multiple batches, images only for reference.
IP4283CZ10-TBA,115 Nexperia USA Inc. IP4283CZ10-TBA,115 label picture IP4283CZ10-TBA,115 label picture 2 IP4283CZ10-TBA,115 label picture 3 IP4283CZ10-TBA,115 label picture 4 IP4283CZ10-TBA,115 real image IP4283CZ10-TBA,115 real image 2 IP4283CZ10-TBA,115 real image 3 IP4283CZ10-TBA,115 label picture 5
IP4283CZ10-TBA,115 Nexperia USA Inc. IP4283CZ10-TBA,115 label picture IP4283CZ10-TBA,115 label picture 2 IP4283CZ10-TBA,115 label picture 3 IP4283CZ10-TBA,115 label picture 4 IP4283CZ10-TBA,115 real image IP4283CZ10-TBA,115 real image 2 IP4283CZ10-TBA,115 real image 3 IP4283CZ10-TBA,115 label picture 5
Same model may have multiple batches, images only for reference.

IP4283CZ10-TBA,115

Part No IP4283CZ10-TBA,115
Manufacturer Nexperia USA Inc.
Catalog TVS - Diodes
Description ESD Protection Diodes / TVS Diodes ESD protection for ultra high-speed interfaces
Datasheet
IP4283CZ10-TBA,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Type Steering (Rail to Rail)
Unidirectional Channels 4
STAND-OFF Voltage (Vwm) 5.5V
Minimum Breakdown Voltage 6V
Max Clamping Voltage 9.5V (Typ)
Peak Pulse Current(Ippm) 3.8A (8/20μs)
Power Line Protection Yes
Applications HDMI
Temperature Range - Operating -40°C to 85°C (TA)
Mounting SMD (SMT)

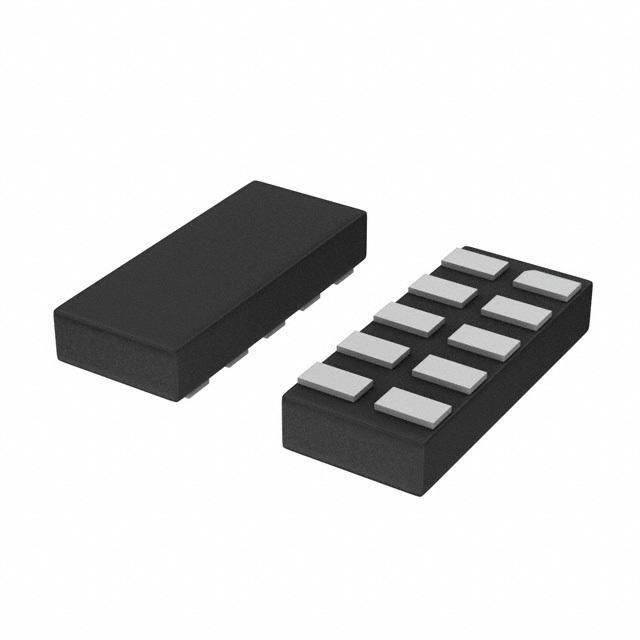

Case / Package DFN2510-10
Win Source Part Number 1045674-IP4283CZ10-TBA,115
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Sufficient
Family Name IP4283CZ10-TBA
Introduction Date July 17, 2008
ECCN EAR99
Country of Origin Thailand
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian IP4283CZ10-TBA,115 CAD Model

Description

The IP4283CZ10-TBA steering (rail to rail) circuit protection device from Nexperia USA Inc. is a high-performance device that is widely used in various electronic applications.

  • STAND-OFF Voltage (Vwm): 5.5V
  • Minimum Breakdown Voltage: 6V
  • Peak Pulse Current (Ippm): 3.8A (8/20μs)
  • Application: HDMI
  • Package: DFN2510-10
  • Halogen-Free: Yes
  • ECCN: EAR99
  • Estimated EOL Date: 2026
