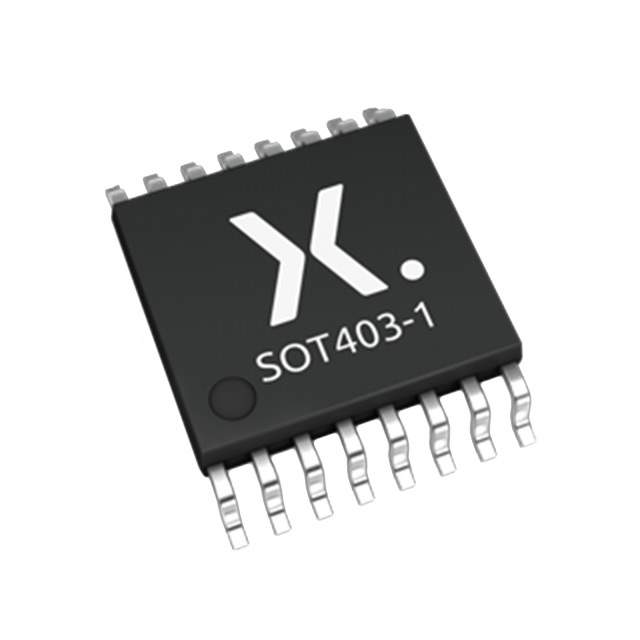

HEF4053BTT-Q100J Real Image1 HEF4053BTT-Q100J Real Image2
HEF4053BTT-Q100J Real Image1 HEF4053BTT-Q100J Real Image2
Same model may have multiple batches, images only for reference.

HEF4053BTT-Q100J

Part No HEF4053BTT-Q100J
Manufacturer Nexperia USA Inc.
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SWITCH SPDTX3 155OHM 16TSSOP / 3 Circuit IC Switch 2:1 155Ohm 16-TSSOP
Datasheet
HEF4053BTT-Q100J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>Interface>Analog Switches, Multiplexers, Demultiplexers
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q100, 4000B
Package Tape & Reel
Switch Circuit SPDT
Number of Circuits 3
On-State Resistance (Max) 155Ohm
Channel-to-Channel Matching (ΔRon) 5Ohm
Voltage - Supply, Single (V+) 3V ~ 15V
Voltage - Supply, Dual (V±) -
Switch Time (Ton, Toff) (Max) -
-3db Bandwidth 70MHz
Charge Injection -
Channel Capacitance (CS(off), CD(off)) 7.5pF
Current - Leakage (IS(off)) (Max) 200nA
Crosstalk -50dB @ 1MHz
Temperature Range - Operating -40°C ~ 125°C (TA)
Mounting Type Surface Mount
Package / Case 16-TSSOP (0.173", 4.40mm Width)
Supplier Device Package 16-TSSOP
Base Product Number HEF4053
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 2,500 pcs
Win Source Part Number 1382224-HEF4053BTT-Q100J
Ultra Librarian 3D Model Ultra Librarian HEF4053BTT-Q100J CAD Model

Description

The HEF4053BTT-Q100J Analog Switch is a high-quality integrated circuit designed for interface applications from Nexperia USA Inc..

  • Switch Circuit: 3 x SPDT
  • On-State Resistance (Max): 155 Ohms
  • -3dB Bandwidth: 70MHz
  • Voltage Supply: 3V to 15V
  • Mounting Type: Surface Mount
  • Package: 16-TSSOP
  • Package Width: 0.173" (4.40mm)
  • Operating Temperature: -40°C to 125°C
