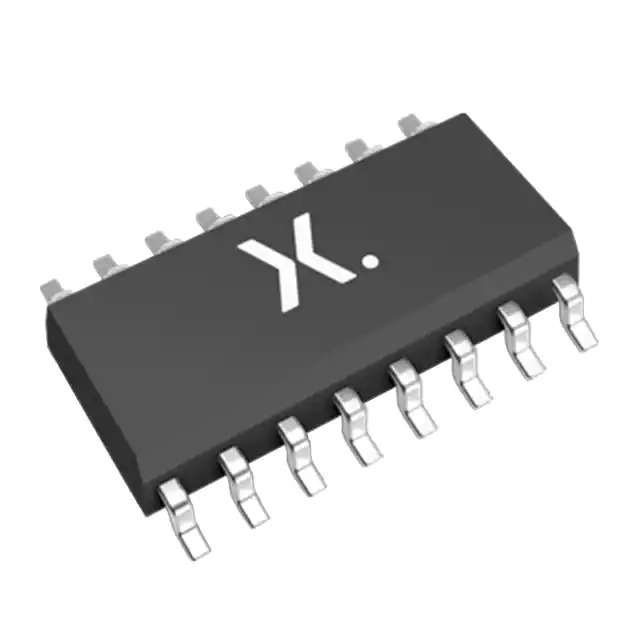

HEF4020BT,652 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

HEF4020BT,652

Part No HEF4020BT,652
Manufacturer Nexperia USA Inc.
Catalog Logic - Counters, Dividers
Description IC BINARY COUNTER 14-BIT 16SO
Datasheet
HEF4020BT,652 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Counters, Dividers
Mfr Nexperia USA Inc.
Series 4000B
Package Tube
Product Status Obsolete
Logic Type Binary Counter
Direction Up
Number of Elements 1
Number of Bits per Element 14
Reset Asynchronous
Timing -
Count Rate 35 MHz
Trigger Type Negative Edge
Voltage - Supply 3 V ~ 15 V
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 16-SOIC (0.154", 3.90mm Width)
Supplier Device Package 16-SO
Base Product Number HEF4020
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371218-HEF4020BT,652
Ultra Librarian 3D Model Ultra Librarian HEF4020BT,652 CAD Model

Description

The HEF4020BT,652 is a binary counter IC from the 4000B series.

  • Manufacturer: Nexperia USA Inc.
  • Temperature Range: -40°C to 85°C
  • Voltage Supply Range: 3V to 15V
  • Package: 16-SOIC
  • Mounting Type: Surface Mount
  • Elements: Single
  • Bits per Element: 14
  • Direction: Up
  • Trigger Type: Negative Edge
  • Count Rate: 35MHz
