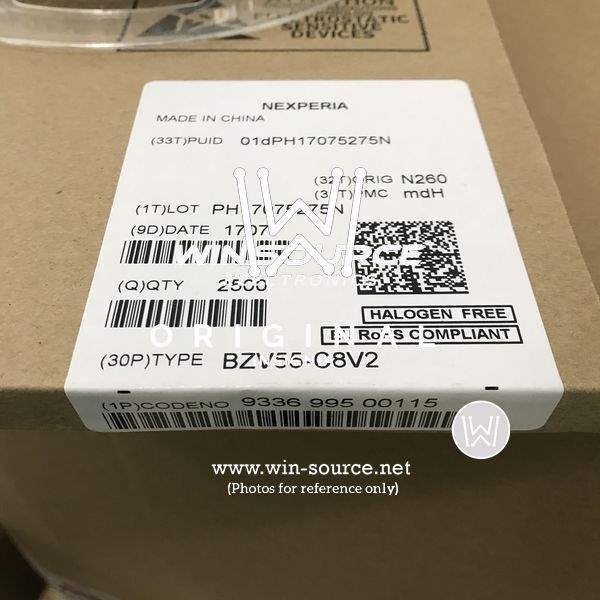

BZV55-C8V2,115 Nexperia USA Inc. BZV55-C8V2,115 label picture
Same model may have multiple batches, images only for reference.
BZV55-C8V2,115 Nexperia USA Inc. BZV55-C8V2,115 label picture
BZV55-C8V2,115 Nexperia USA Inc. BZV55-C8V2,115 label picture
Same model may have multiple batches, images only for reference.

BZV55-C8V2,115

Part No BZV55-C8V2,115
Manufacturer Nexperia USA Inc.
Catalog Diodes - Zener - Single
Description DIODE ZENER 8.2V 500MW SOD80C
Datasheet
BZV55-C8V2,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Voltage - Zener (Nom) (Vz) 8.2V
Tolerance ±5%
Maximum Power Dissipation 500mW
Impedance (Max) (Zzt) 15 Ohm
Current - Reverse Leakage @ Vr 700nA @ 5V
Voltage - Forward (Vf) (Max) @ If 900mV @ 10mA
Temperature Range - Operating -65°C to 200°C
Mounting SMD (SMT)
Case / Package SOD-80C
Win Source Part Number 1026246-BZV55-C8V2,115
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian BZV55-C8V2,115 CAD Model

Description

The Nexperia USA Inc. BZV55-C8V2,115 is a zener diode with a voltage tolerance of ±5%.

  • Manufacturer: Nexperia USA Inc.
  • Voltage Tolerance: ±5%
  • Forward Voltage: 900mV @ 10mA
  • Reverse Leakage Current: 700nA @ 5V
  • Zener Voltage: 8.2V
  • Maximum Impedance: 15 Ohm
  • Package: SOD-80C
  • Operating Temperature: -65°C to 200°C
  • Maximum Power Dissipation: 500mW
  • Application: Suitable for use in various discrete semiconductor products.
