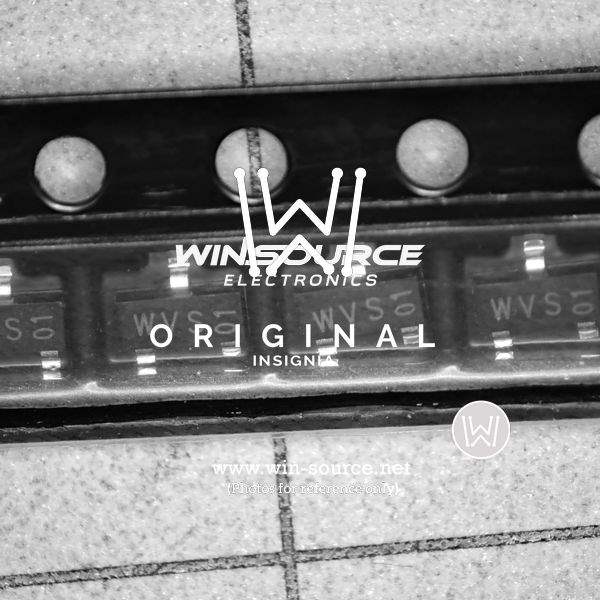

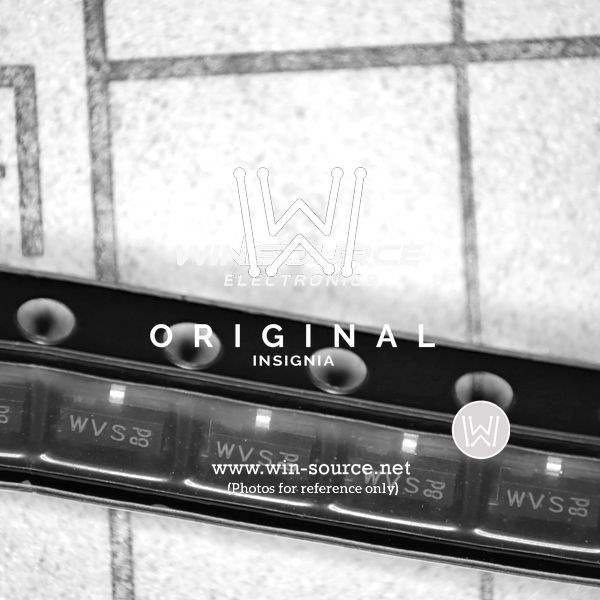

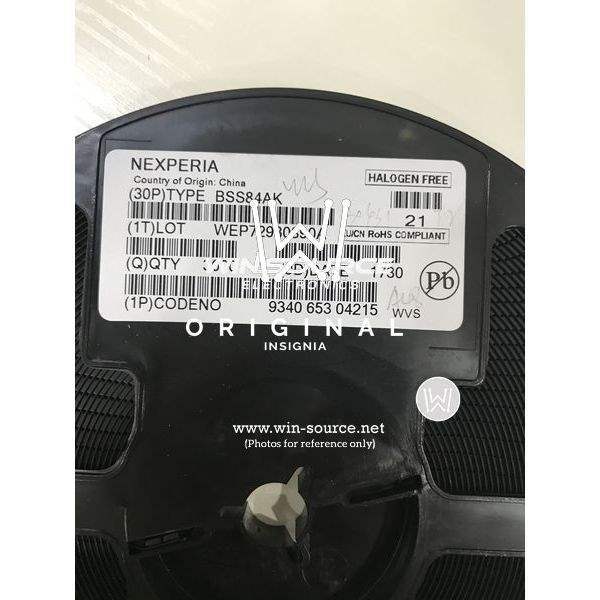

BSS84AK,215 Nexperia USA Inc. BSS84AK,215 Real Image1 BSS84AK,215 Real Image2 BSS84AK,215 label picture
Same model may have multiple batches, images only for reference.
BSS84AK,215 Nexperia USA Inc. BSS84AK,215 Real Image1 BSS84AK,215 Real Image2 BSS84AK,215 label picture
BSS84AK,215 Nexperia USA Inc. BSS84AK,215 Real Image1 BSS84AK,215 Real Image2 BSS84AK,215 label picture
Same model may have multiple batches, images only for reference.

BSS84AK,215

Part No BSS84AK,215
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description MOSFETs 50 V, 230 mA P-channel Trench MOSFET
Datasheet
BSS84AK,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Technology Si
Mounting Style SMD/SMT
Package / Case SOT-23-3
Transistor Polarity P-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 50 V
Id - Continuous Drain Current 180 mA
Rds On - Drain-Source Resistance 7.5 Ohms
Vgs - Gate-Source Voltage - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage 1.1 V
Qg - Gate Charge 260 pC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 420 mW
Channel Mode Enhancement
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Brand Nexperia
Product Type MOSFETs
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian BSS84AK,215 CAD Model

Description

The Nexperia USA Inc. BSS84AK,215 is a P-Channel MOSFET designed for discrete semiconductor products.

  • Channel Type: P-Channel
  • Mounting Technology: Surface mount technology (SMT)
  • Maximum Power Dissipation: 350mW (Ta), 1.14W (Tc)
  • Category: Circuit protection
  • Status: Active
  • Temperature Range: -55°C to 150°C (TJ)
  • Package: TO-236AB (SOT23)
  • Drain-Source Breakdown Voltage: 50V
  • Continuous Drain Current @ 25°C: 180mA (Ta)
  • Max Gate Charge: 0.35nC @ 5V
  • Maximum Rds On @ Id,Vgs: 7.5 Ohm @ 100mA, 10V
  • Supply and Demand Status: Sufficient
