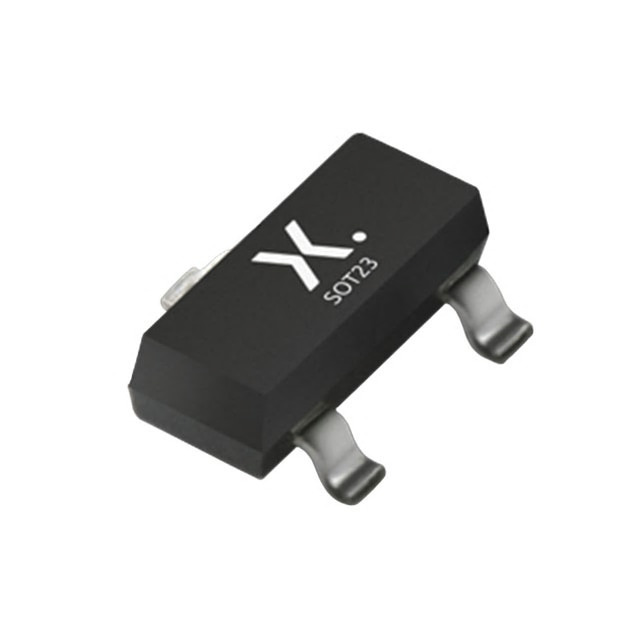

BAW156,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAW156,215

Part No BAW156,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 75V 160MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Configuration 1 Pair Common Anode
Diode Type Standard
Voltage - DC Reverse (Vr) (Maximum) 75V
Current - Average Rectified (Io) (per Diode) 160mA (DC)
Voltage - Forward (Vf) (Maximum) at If 1.25V at 150mA
Reverse Recovery Time (trr) 3μs
Current - Reverse Leakage at Vr 5nA at 75V
Operating Temperature - Junction 150°C (Maximum)
Mounting Style SMD
Manufacturer Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Part Number Series BAW156
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802488-BAW156,215
Ultra Librarian 3D Model Ultra Librarian BAW156,215 CAD Model

Description

The BAW156,215 standard diode from Nexperia USA Inc. is a high popularity product.

  • DC Reverse Voltage: 75V
  • Average Rectified Current: 160mA
  • Reverse Recovery Time: 3μs
  • Manufacturer Pack Quantity: 3,000
