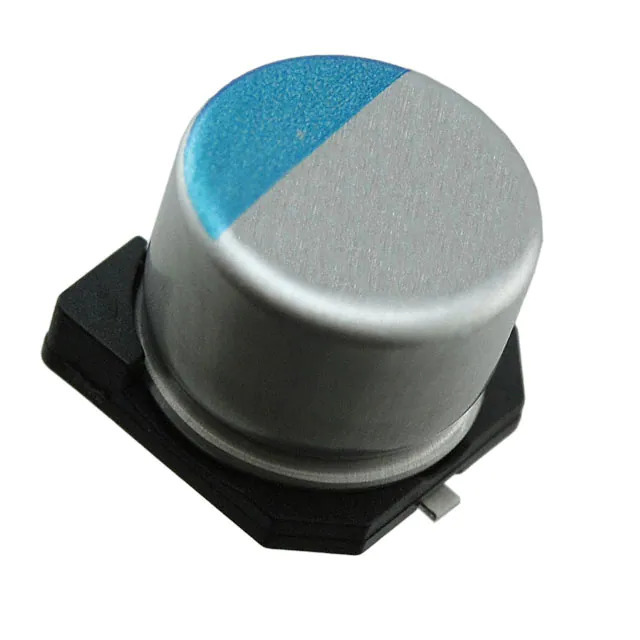

APXG160ARA561MJ80G United Chemi-Con
Same model may have multiple batches, images only for reference.

APXG160ARA561MJ80G

Part No APXG160ARA561MJ80G
Manufacturer United Chemi-Con
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 560UF 20% 16V SMD / 560 µF 16 V Aluminum - Polymer Capacitors Radial, Can - SMD 20mOhm 15000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr United Chemi-Con
Series NPCAP™-PXG
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 560 µF
Tolerance ±20%
Voltage - Rated 16 V
ESR (Equivalent Series Resistance) 20mOhm
Lifetime @ Temp. 15000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ High Frequency 3.8 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.315" (8.00mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1359528-APXG160ARA561MJ80G
Ultra Librarian 3D Model Ultra Librarian APXG160ARA561MJ80G CAD Model

Description

The 1359528-APXG160ARA561MJ80G is a polymer capacitor manufactured by United Chemi-Con.

  • Series: NPCAP™-PXG
  • Capacitance: 560 μF
  • Tolerance: ±20%
  • Operating Temperature: -55°C to 105°C
  • Application: General Purpose
  • Voltage Rating: 16 V
  • ESR: 20 mOhm
  • Mounting Type: Surface Mount
  • Package: Radial, Can - SMD
  • Diameter: 0.394 inches (10.00 mm)
  • Height: 0.315 inches (8.00 mm)
  • Land Size: 0.406 inches L x 0.406 inches W (10.30 mm x 10.30 mm)
  • Lifetime: 15,000 hours @ 105°C
  • REACH: Unaffected
  • ECCN: EAR99
