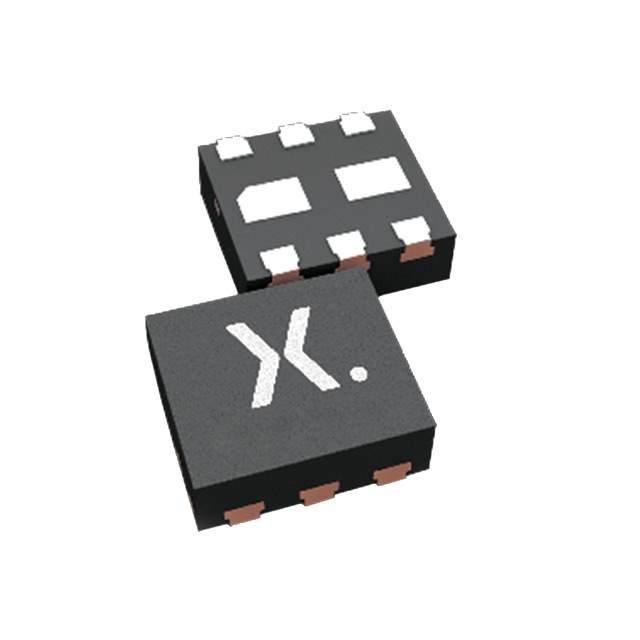

BAV70SRAZ Real Image
Same model may have multiple batches, images only for reference.

BAV70SRAZ

Part No BAV70SRAZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY GP 100V 355MA 6DFN / Diode Array 2 Pair Common Cathode Standard 100 V 355mA (DC) Surface Mount 6-XFDFN Exposed Pad
Datasheet
BAV70SRAZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Configuration 2 Pair Common Cathode
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) (per Diode) 355mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Package / Case 6-XFDFN Exposed Pad
Supplier Device Package DFN1412-6
Base Product Number BAV70
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 934070161147,NEXNEXBAV70SRAZ,1727-7380-6,1727-7380-2,BAV70SRAZ-ND,1727-7380-1,2156-BAV70SRAZ-NEX
Standard Package 5,000
Win Source Part Number 1113681-BAV70SRAZ
Ultra Librarian 3D Model Ultra Librarian BAV70SRAZ CAD Model

Description

The BAV70SRAZ is a standard diode array that features a reverse voltage of 100 V and a forward voltage of 1.25 V @ 150 mA.

  • Reverse Voltage: 100 V
  • Forward Voltage: 1.25 V @ 150 mA
  • Reverse Recovery Time: 4 ns
  • Current Leakage: 500 nA @ 80 V
  • Configuration: Dual common cathode
  • Package: 6-XFDFN exposed pad
  • Operating Temperature: -55 °C to 150 °C
