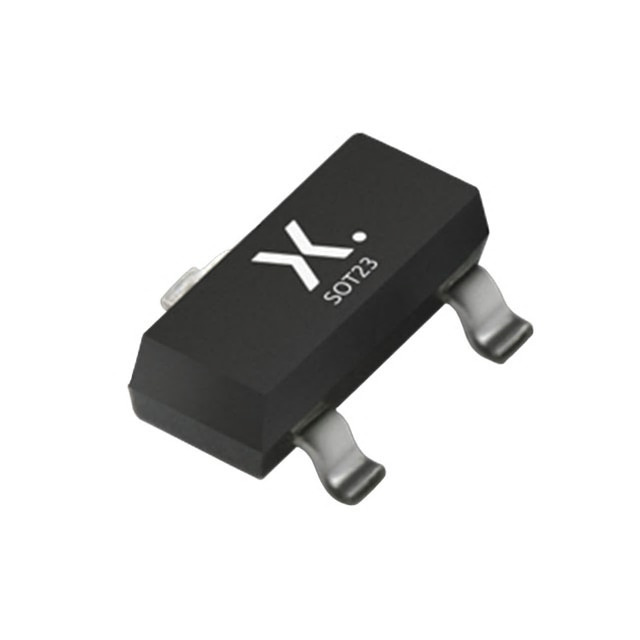

BAT54,235

Name: BAT54,235
Brand: Nexperia USA Inc.
SKU: 800982
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAT54,235
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 30V 200MA SOT23
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Nexperia USA Inc.
Packaging	Reel
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Maximum)	30V
Current - Average Rectified (Io)	200mA (DC)
Voltage - Forward (Vf) (Maximum) at If	800mV at 100mA
Reverse Recovery Time (trr)	5ns
Current - Reverse Leakage at Vr	2μA at 25V
Capacitance at Vr, F	10pF at 1V, 1MHz
Mounting Style	SMD
Manufacturer Package	TO-236-3, SC-59, SOT-23-3
Supplier Device Package	TO-236AB
Operating Temperature - Junction	150°C (Maximum)
Part Number Series	BAT54
Manufacturer Pack Quantity	10,000
MSL Level	1 (Unlimited)
Popularity	High
Supply and Demand Status	Sufficient
Win Source Part Number	800982-BAT54,235
Ultra Librarian 3D Model	Ultra Librarian BAT54,235 CAD Model

Alternative Products

Description

The BAT54,235, a Schottky diode, is manufactured by Nexperia USA Inc.

Win Source Part Number: 800982-BAT54,235
Package: TO-236AB
Maximum DC Reverse Voltage: 30V
Forward Voltage: 800mV @ 100mA
Current Rating: 200mA
Reverse Leakage Current: 2μA @ 25V
