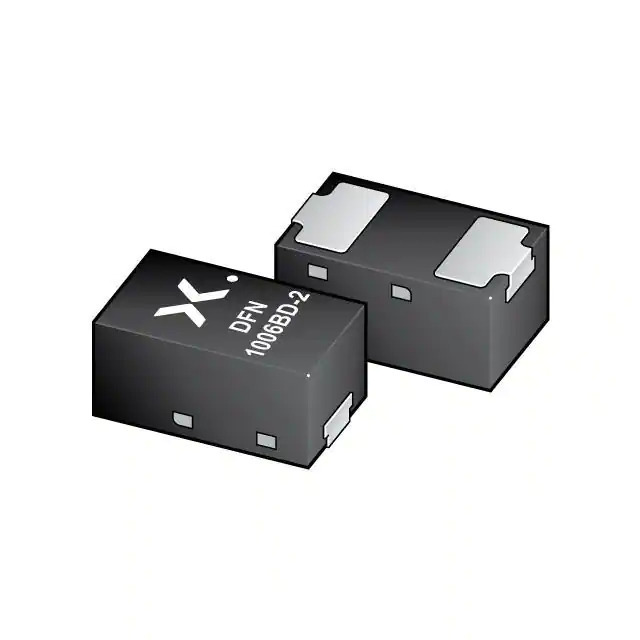

Same model may have multiple batches, images only for reference.

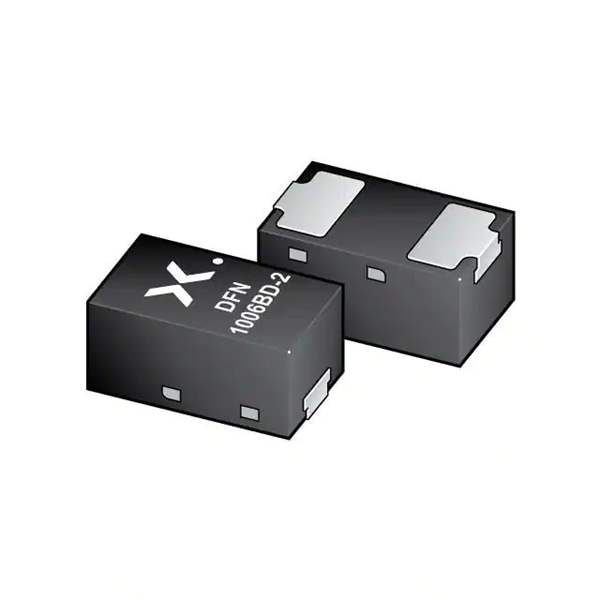

BAS40LS-QYL

Name: BAS40LS-QYL
Brand: Nexperia USA Inc.
SKU: 1367014
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAS40LS-QYL
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Single
Description	DIODE SCHOTTKY 40V 120MA 2DFN
Datasheet	BAS40LS-QYL Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q100
Package	Tape & Reel
Product Status	Active
Technology	Schottky
Voltage - DC Reverse (Vr) (Max)	40 V
Current - Average Rectified (Io)	120mA
Voltage - Forward (Vf) (Max) @ If	1 V @ 40 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Current - Reverse Leakage @ Vr	10 µA @ 40 V
Capacitance @ Vr, F	5pF @ 0V, 1MHz
Mounting Type	Surface Mount
Package / Case	SOD-882
Supplier Device Package	DFN1006BD-2
Operating Temperature - Junction	150°C
Base Product Number	BAS40
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Win Source Part Number	1367014-BAS40LS-QYL
Ultra Librarian 3D Model	Ultra Librarian BAS40LS-QYL CAD Model

Alternative Products

Description

The BAS40LS-QYL is a single diode integrated circuit (IC) from Nexperia USA Inc. designed for rectifier applications and is part of the Automotive, AEC-Q100 series.

Diode Type: Schottky
Maximum DC Reverse Voltage: 40V
Average Rectified Current: 120mA
Forward Voltage: 1V @ 40mA
Small Signal Speed: less than 200mA
Reverse Leakage Current: 10μA @ 40V
Capacitance: 5pF @ 0V, 1MHz
Mounting: Surface Mount (SOD-882)
Packaging: Tape and Reel
REACH: Unaffected
Operating Temperature: 150°C
