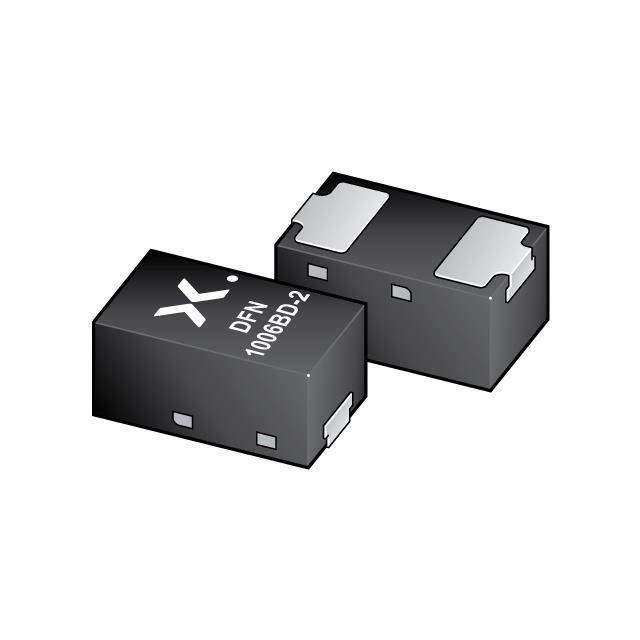

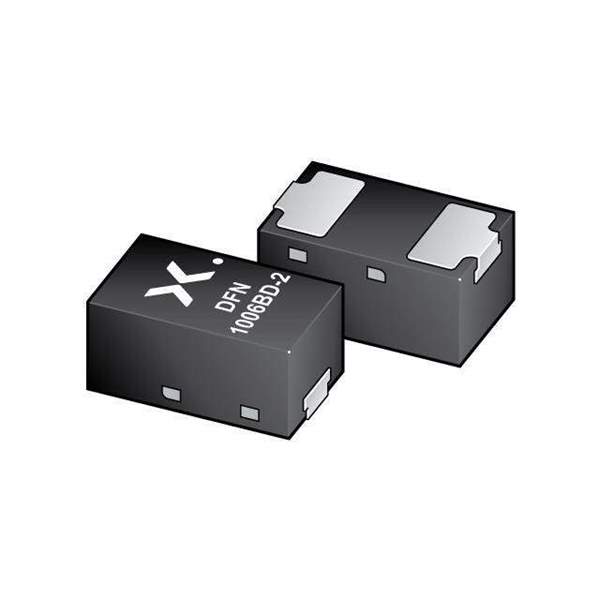

BAS16LSYL Real Image
Same model may have multiple batches, images only for reference.

BAS16LSYL

Part No BAS16LSYL
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 100V 215MA 2DFN / Diode Standard 100 V 215mA (DC) Surface Mount DFN1006BD-2
Datasheet
BAS16LSYL Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 100 V
Current - Average Rectified (Io) 215mA (DC)
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 150 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 500 nA @ 80 V
Capacitance @ Vr, F 1.5pF @ 0V, 1MHz
Mounting SMD (SMT)
Package / Case SOD-882
Supplier Device Package DFN1006BD-2
Operating Temperature - Junction 150°C
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-BAS16LSYLCT,934661543315,1727-BAS16LSYLDKR,1727-BAS16LSYLTR
Standard Package 10,000
Win Source Part Number 983875-BAS16LSYL
Ultra Librarian 3D Model Ultra Librarian BAS16LSYL CAD Model

Description

The 983875-BAS16LSYL is a standard diode rectifier integrated circuit.

  • Maximum DC Reverse Voltage: 100V
  • Average Rectified Current: 215mA (DC)
  • Package: Tape and Reel
  • Standard Package: 10,000
  • Reverse Recovery Time: 4ns
  • Capacitance: 1.5pF @ 0V, 1MHz
  • Operating Temperature Range: 150°C
  • Alternative Parts Cross-Reference: 1727-BAS16LSYLCT, 934661543315, 1727-BAS16LSYLDKR, and 1727-BAS16LSYLTR
