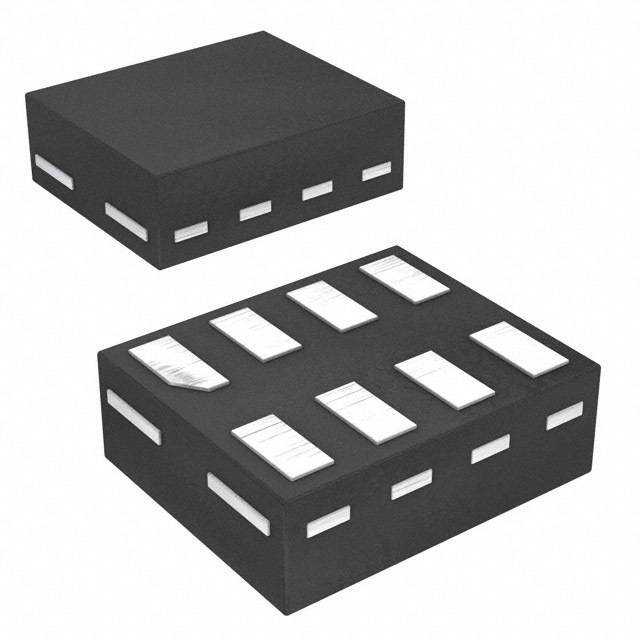

Same model may have multiple batches, images only for reference.
74LVC1G74GN,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LVC1G74GN,115

Part No 74LVC1G74GN,115
Manufacturer Nexperia USA Inc.
Catalog Logic - Flip Flops
Description IC D-TYPE POS TRG SNGL 8XSON
Datasheet
74LVC1G74GN,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Nexperia USA Inc.
Series 74LVC
Packaging Reel package
Function Set(Preset) and Reset
Type D-Type
Output Type Differential
Number of Elements 1
Number of Bits per Element 1
Clock Frequency 200MHz
Max Propagation Delay @ V, Max CL 4.1ns @ 5V, 50pF
Current - Output High, Low 32mA, 32mA
Operating Supply Voltage 1.65 V ~ 5.5 V
Current - Quiescent 40μA
Input Capacitance 4pF
Operating Temperature Range -40°C ~ 125°C (TA)
Mounting SMD
Package 8-XFDFN
Win Source Part Number 765706-74LVC1G74GN,115
Popularity Medium
Supply and Demand Status Limited
Family Name 74LVC1G74
Introduction Date February 02, 2004
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2026
Ultra Librarian 3D Model Ultra Librarian 74LVC1G74GN,115 CAD Model

Description

The 74LVC1G74GN,115 D-Type flip-flop IC with Set(Preset) and Reset function, manufactured by Nexperia USA Inc., has these specifications:

  • Logic Type: D-Type Flip-Flop
  • Output Type: Differential
  • Current Output High and Low: 32mA each
  • Operating Supply Voltage: 1.65V to 5.5V
  • Maximum Propagation Delay: 4.1ns @ 5V, 50pF CL
  • Package: 8-XFDFN
  • Mounting: SMD
  • Quiescent Current: 40μA
  • Input Capacitance: 4pF
  • Series: 74LVC1G74
  • Clock Frequency: 200MHz
  • Halogen-Free Regulations: Compliant
  • Popularity: Medium
  • Supply and Demand Status: Limited
