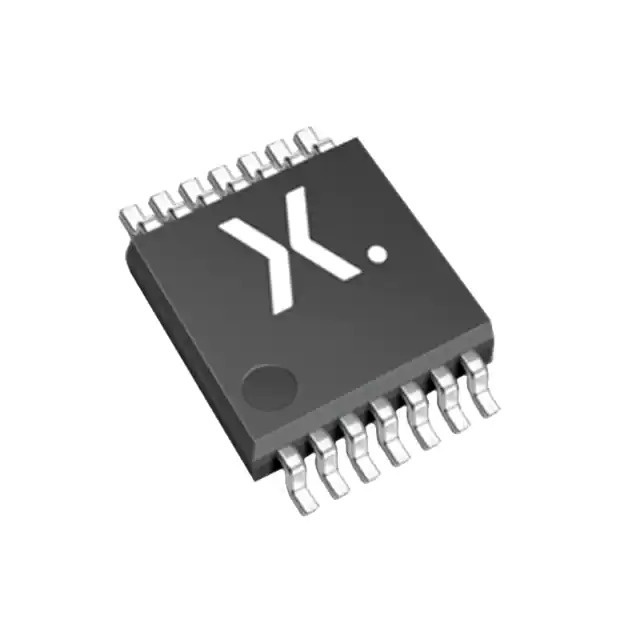

74LV00APWJ Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74LV00APWJ

Part No 74LV00APWJ
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE NAND 4CH 2INP 14TSSOP / NAND Gate IC 4 Channel 14-TSSOP
Datasheet
74LV00APWJ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74LV
Package Tape & Reel
Product Status Active
Logic Type NAND Gate
Number of Circuits 4
Number of Inputs 2
Features -
Voltage - Supply 2V ~ 5.5V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 12mA, 12mA
Input Logic Level - Low 0.1V ~ 0.55V
Input Logic Level - High 1.9V ~ 3.8V
Max Propagation Delay @ V, Max CL 7.5ns @ 5V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74LV00
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1371167-74LV00APWJ
Ultra Librarian 3D Model Ultra Librarian 74LV00APWJ CAD Model

Description

The Nexperia USA Inc. 74LV00APWJ is an active integrated circuit (IC) belonging to the 74LV series.

  • Type: NAND gate logic IC
  • Temperature Range: -40°C to 125°C
  • Voltage Supply Range: 2V to 5.5V
  • Circuits: 4 circuits, each with 2 inputs
  • Current Quiescent: 2µA
  • Current Output (High/Low): 12mA
  • Mounting: Surface mount
  • Package: 14-TSSOP
  • Width: 4.40mm
  • REACH: Unaffected
  • ECCN: EAR99
