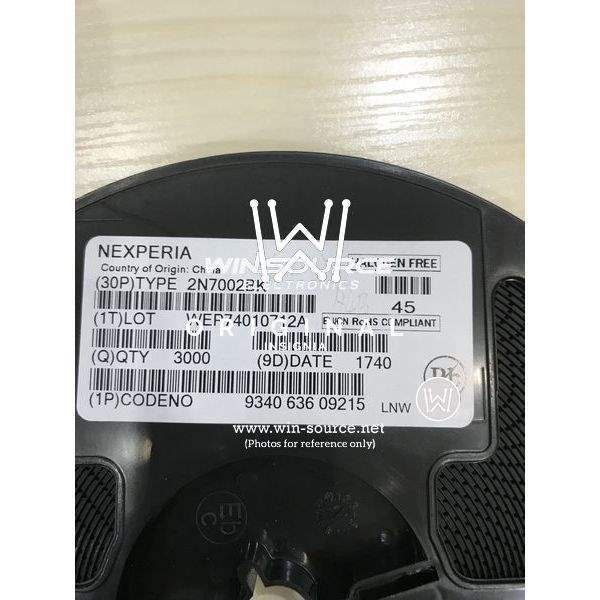

2N7002BK,215 Nexperia USA Inc. 2N7002BK,215 label picture 1 2N7002BK,215 label picture 2 2N7002BK,215 label picture 3 2N7002BK,215 label picture 4 2N7002BK,215 label picture 5 2N7002BK,215 label picture 6 2N7002BK,215 label picture 7 2N7002BK,215 label picture 8 2N7002BK,215 real image
Same model may have multiple batches, images only for reference.
2N7002BK,215 Nexperia USA Inc. 2N7002BK,215 label picture 1 2N7002BK,215 label picture 2 2N7002BK,215 label picture 3 2N7002BK,215 label picture 4 2N7002BK,215 label picture 5 2N7002BK,215 label picture 6 2N7002BK,215 label picture 7 2N7002BK,215 label picture 8 2N7002BK,215 real image
2N7002BK,215 Nexperia USA Inc. 2N7002BK,215 label picture 1 2N7002BK,215 label picture 2 2N7002BK,215 label picture 3 2N7002BK,215 label picture 4 2N7002BK,215 label picture 5 2N7002BK,215 label picture 6 2N7002BK,215 label picture 7 2N7002BK,215 label picture 8 2N7002BK,215 real image
Same model may have multiple batches, images only for reference.

2N7002BK,215

Part No 2N7002BK,215
Manufacturer Nexperia USA Inc.
Catalog TRANSISTORS
Description MOSFETs 60 V, 300 mA dual N-channel Trench MOSFET
Datasheet
2N7002BK,215 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia
Technology Si
Mounting Style SMD/SMT
Package / Case SOT-23-3
Transistor Polarity N-Channel
Number of Channels 1 Channel
Vds - Drain-Source Breakdown Voltage 60 V
Id - Continuous Drain Current 350 mA
Rds On - Drain-Source Resistance 1.6 Ohms
Vgs - Gate-Source Voltage - 20 V, + 20 V
Vgs th - Gate-Source Threshold Voltage 1.1 V
Qg - Gate Charge 600 pC
Minimum Operating Temperature - 55 C
Maximum Operating Temperature + 150 C
Pd - Power Dissipation 440 mW
Channel Mode Enhancement
Packaging Cut Tape
Packaging MouseReel
Packaging Reel
Brand Nexperia
Product Type MOSFETs
Standard Pack Qty 3000
Subcategory Transistors
Ultra Librarian 3D Model Ultra Librarian 2N7002BK,215 CAD Model

Description

The Nexperia USA Inc. N-Channel MOSFET with Win Source Part Number 1004052-2N7002BK,215 is an ideal SMD (SMT) mounting component for discrete semiconductor products.

  • Drain-Source Breakdown Voltage: 60V
  • Continuous Drain Current: 350mA (Ta)
  • Maximum Power Dissipation: 370mW (Ta)
  • Gate-Source Threshold Voltage: 2.1V @ 250μA
  • Maximum Gate-Source Voltage: ±20V
  • Maximum Rds On: 1.6 Ohm @ 500mA, 10V
  • Technology: N-Channel
  • Polarity: N-Channel
