Product Overview: ADV7800BSTZ-80 by Analog Devices Inc.

The ADV7800BSTZ-80 is a high-performance, mixed-signal video processing IC from the renowned manufacturer Analog Devices Inc. This advanced component is designed to cater to a wide range of video applications, providing top-notch solutions for video signal reception and processing. Ideal for use in professional video editing, broadcasting, and high-end consumer electronics, the ADV7800BSTZ-80 stands out with its exceptional video quality and versatility.

Key Features

• High-Quality Video Processing: The ADV7800BSTZ-80 supports various video formats and standards, ensuring compatibility with multiple video sources and displays.
• Integrated 3D Comb Filter: This feature allows for superior decoding of composite video signals, resulting in cleaner and more accurate color separation.
• Multiple Input Formats: The device accepts a wide range of input formats, including composite, S-Video, component, SCART, and RGB, making it highly adaptable to different signal types.
• Programmable Scaler: With an onboard programmable scaler, this IC can upscale or downscale video to match the desired output resolution, maintaining optimal picture quality.
• Advanced De-Interlacing: The ADV7800BSTZ-80 utilizes sophisticated algorithms to convert interlaced video into a progressive format, enhancing the clarity and sharpness of fast-moving images.
• Low Power Consumption: Designed with power efficiency in mind, the device operates with minimal power draw, making it suitable for energy-conscious applications.

Applications

• High-Definition Televisions (HDTVs)
• Professional Video Editing Suites
• Digital Video Recorders (DVRs)
• Video Projectors
• Video Conference Systems

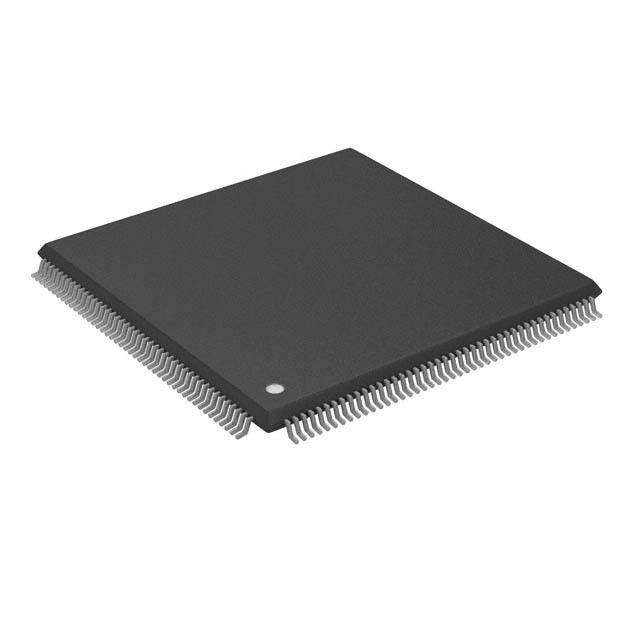

The ADV7800BSTZ-80 is packaged in a compact LQFP-80 (Low-profile Quad Flat Package), ensuring a small footprint for space-constrained designs. It operates over a wide temperature range, making it reliable for use in diverse environments. With its robust feature set and Analog Devices' reputation for quality, the ADV7800BSTZ-80 is an excellent choice for developers looking to create or upgrade their video processing systems.

For detailed technical specifications, application notes, and support resources, designers and engineers are encouraged to visit the Analog Devices Inc. website or contact their support team for further assistance.
