Same model may have multiple batches, images only for reference.

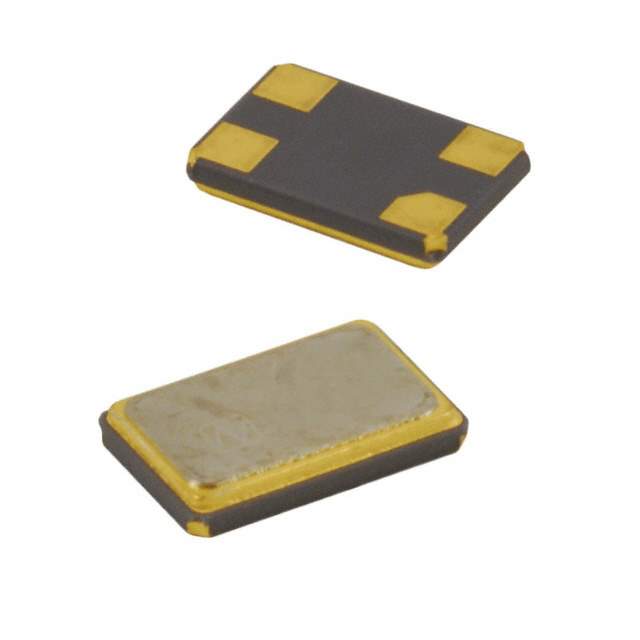

NX4025DA-13.000000MHZ-B6 Real Image
Same model may have multiple batches, images only for reference.

NX4025DA-13.000000MHZ-B6

Part No NX4025DA-13.000000MHZ-B6
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 13.0000MHZ 10PF SMD / Crystal 13MHz ±10ppm (Tol) ±10ppm (Stability) 10pF FUND 60Ohm
Datasheet
NX4025DA-13.000000MHZ-B6 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series NX4025DA
Packaging Reel package
Part Status Obsolete(EOL)
Type MHz Crystal
Frequency 13MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohm
Operating Mode Fundamental
Operating Temperature Range -20°C ~ 70°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.157" L x 0.098" W (4.00mm x 2.50mm)
Height - Seated (Maximum) 0.028" (0.70mm)
Win Source Part Number 790878-NX4025DA-13.000000MHZ-B6
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date 2022
Ultra Librarian 3D Model Ultra Librarian NX4025DA-13.000000MHZ-B6 CAD Model

Description

The NDK America, Inc. NX4025DA-13.000000MHZ-B6 is a MHz crystal.

  • Temperature Range: -20°C to 70°C
  • Package: 4-SMD, no lead
  • Frequency: 13MHz
  • ESR: 60 Ohm
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Operating Mode: fundamental
  • Dimension: 0.157" L x 0.098" W (4.00mm x 2.50mm)
  • Height: 0.028" (0.70mm)
  • Supply and Demand Status: limited
