Same model may have multiple batches, images only for reference.

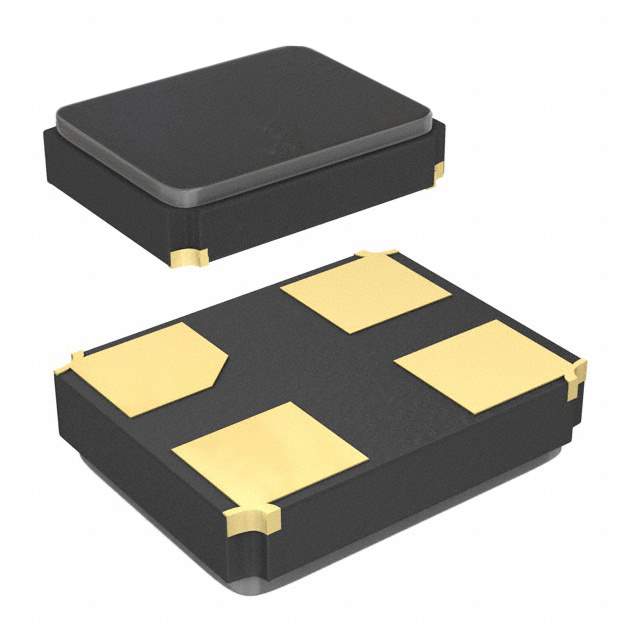

NX3225GA-12MHZ-STD-CRG-2 Real Image
Same model may have multiple batches, images only for reference.

NX3225GA-12MHZ-STD-CRG-2

Part No NX3225GA-12MHZ-STD-CRG-2
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 12.0000MHZ 8PF SMD
Datasheet
NX3225GA-12MHZ-STD-CRG-2 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series NX3225GA
Packaging Reel package
Type MHz Crystal
Frequency 12MHz
Frequency Stability ±30ppm
Frequency Tolerance ±20ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohm
Operating Mode Fundamental
Operating Temperature Range -40°C ~ 85°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Maximum) 0.035" (0.90mm)
Win Source Part Number 790873-NX3225GA-12MHZ-STD-CRG-2
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NX3225GA-12MHZ-STD-CRG-2 CAD Model

Description

NDK America, Inc.'s NX3225GA-12MHZ-STD-CRG-2 is a medium popularity component.

  • Frequency Tolerance: ±20 ppm
  • Frequency Stability: ±30 ppm
  • ESR: 100 Ohm
  • Package: 4-SMD, no lead
  • Supply and Demand Status: balanced
