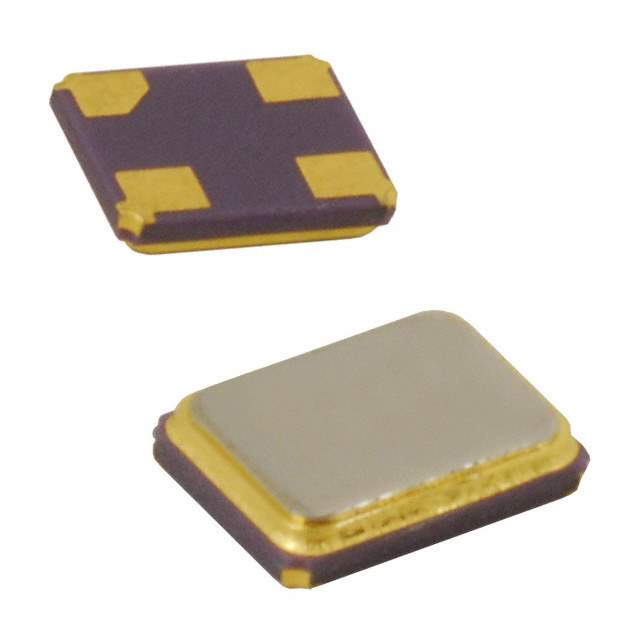

NX2520SA-24.000000MHZ-B8 Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-24.000000MHZ-B8

Part No NX2520SA-24.000000MHZ-B8
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 24.0000MHZ 10PF SMD / 24 MHz ±10ppm Crystal 10pF 100 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX2520SA
Package Tape & Reel
Type MHz Crystal
Frequency 24 MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting SMD (SMT)
Package / Case 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max) 0.026" (0.65mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names 644-1094-2,EXS00A-CS00561,EXS00A-01961,644-1094-1,50157447,644-1094-6,NX2520SA24000000MHZB8
Standard Package 3,000
Win Source Part Number 963443-NX2520SA-24.000000MHZ-B8
Ultra Librarian 3D Model Ultra Librarian NX2520SA-24.000000MHZ-B8 CAD Model

Description

The NX2520SA-24.000000MHZ-B8 from NDK is a 24 MHz crystal oscillator with a frequency stability of ±10ppm and a frequency tolerance of ±10ppm.

  • Frequency: 24 MHz
  • Frequency Stability: ±10ppm
  • Frequency Tolerance: ±10ppm
  • Load Capacitance: 10pF
  • Mode: Fundamental
  • Package: 4-SMD, no lead
  • Dimensions: 0.098" L x 0.079" W (2.50mm x 2.00mm)
